B162B-Left Low Beam Control Circuit Low: Notes

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

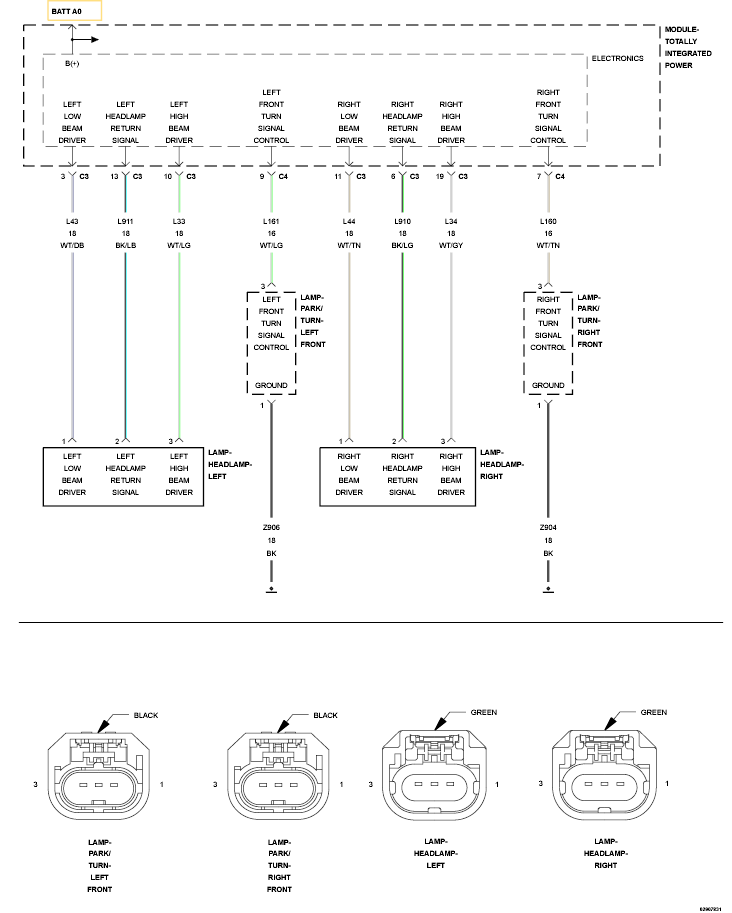

Fig 1: TIPM And Front Headlamps & Turning/Parking Lamps Wiring Diagram
GC0148730Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
