SEAL, Drive Pinion: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Measuring Pinion Rotating Torque
GC0107775Courtesy of CHRYSLER LLC
  1. Remove axle shafts.
  2. Mark the propeller shaft and pinion flange for installation reference.
  3. Remove propeller shaft.
  4. Rotate pinion gear (1) three or four times.
  5. Measure and record the amount of torque necessary to rotate the pinion gear with an inch pound torque wrench (2).

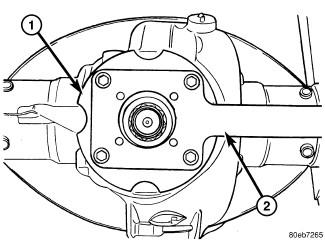

    Fig 2: Flange Wrench
    GC0107829Courtesy of CHRYSLER LLC
  6. Hold pinion flange (1) with Flange Wrench (special tool #8979, Wrench, Pinion Flange) (2) and remove pinion flange nut.

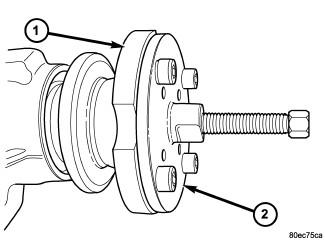

    Fig 3: Identifying Pinion Flange And Puller
    GC0107830Courtesy of CHRYSLER LLC
  7. Remove pinion flange (1) with Pinion Flange Puller (special tool #8992, Remover, Pinion Flange) (2).
  8. Remove pinion shaft seal with a seal puller or slide hammer mounted screw.
