Cover, Seat Cushion, Front: Removal: Removal

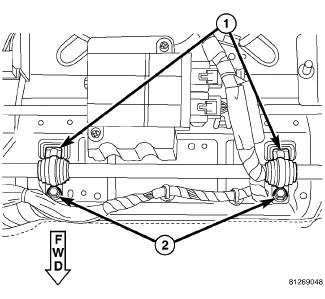

Fig 1: Cushion Nuts

Courtesy of CHRYSLER LLC

1. Before proceeding with the following repair procedure, review all warnings and cautions. Refer to Seats, Warning .
2. Move the seat to the forward position and disconnect and isolate the batter negative cable.
3. Remove the bolts (2) and the clamps (1) and remove the seat cushion.
4. Disconnect the electrical connector, if equipped.

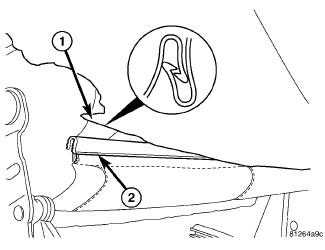

   Fig 2: J-straps

   Courtesy of CHRYSLER LLC
5. Separate the j-straps (1 AND 2) and seat cushion cover and foam.
