LAMP, Courtesy, Cupholder: Removal: Removal

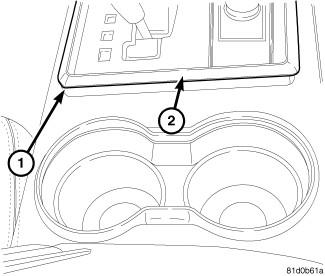

Fig 1: Identifying Shifter Trim Ring

Courtesy of CHRYSLER LLC

1. Disconnect the battery negative cable.
2. Place the shifter into the neutral position.
3. Insert a trim stick or equivalent at (1) and gently pry to remove the shifter trim ring (2).
   Fig 2: Identifying Shifter Trim Ring

   Courtesy of CHRYSLER LLC
4. Insert a trim stick or equivalent at point (1) and gently pry to remove console trim from the center console.

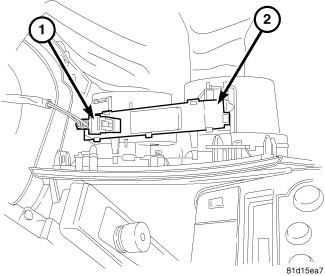

   Fig 3: Identifying Electrical Connector

   Courtesy of CHRYSLER LLC
5. Disconnect the electrical connector (1) from the LED lamp unit (2).
6. Remove the LED lamp (2) from the center console by flexing the lock tabs on the unit.
