Switch-Bank And Bezel Assembly

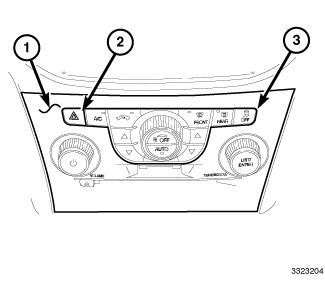

Fig 1: Guide Pins & Switch-Bank Panel

Courtesy of CHRYSLER LLC

Disconnect and isolate the negative battery cable.
CAUTION:
Use care when removing or installing the cubby bin, not to damage or distort the guide pins (4) on either side.
Using a trim stick, pry the switch-bank panel (1) away from the IP, and release the clips that secure the switch-bank to the IP.

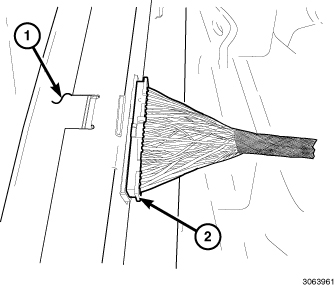

Fig 2: Switch-Bank Panel & Electrical Connector
Courtesy of CHRYSLER LLC
Disconnect the electrical connector (2) from the back of the switch-bank assembly (1). Refer to MODULE, Integrated Center Stack Screen, Removal .
Remove the switch-bank assembly from the vehicle.
