Body - Interior & Exterior: DECKLID/Hatch/Liftgate/Tailgate: Latch: Removal: Removal

Fig 1: Deck Lid

Courtesy of CHRYSLER LLC

1. Open the deck lid.
2. Disconnect and isolate the battery negative cable.
3. Remove the cover from over the latch on the inside of the deck lid.
4. Disconnect the connector (2) of the body wire harness take out for the deck lid (1) from the latch connector receptacle (3).

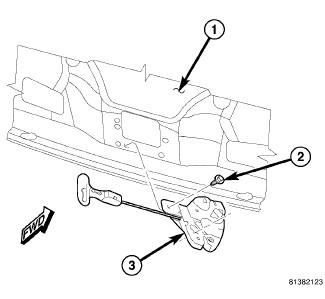

   Fig 2: Latch

   Courtesy of CHRYSLER LLC
5. Remove the two screws (2) that secure the latch (3) to the inside of the deck lid (1).
6. Remove the latch from the inside of the deck lid.
