SENSOR, Oil Temperature: Removal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Release fuel system pressure. Refer to Fuel Delivery, Gas, Standard Procedure .
    Fig 1: Lower Intake Manifold & Attaching Bolts
    GC0144186Courtesy of CHRYSLER LLC
  2. Disconnect and isolate the negative battery cable.
  3. Remove the air inlet hose, upper intake manifold and lower intake manifold with the fuel injectors and fuel rail (2). Refer to MANIFOLD, Intake , Removal .

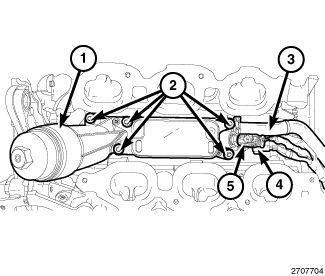

    Fig 2: Oil Temperature Sensor Electrical Connector, Oil Pressure Sensor Electrical Connector, Oil Filter Housing, Heater Hose & Bolts
    GC0144175Courtesy of CHRYSLER LLC
  4. Disconnect the oil temperature sensor electrical connector (5).
    Fig 3: Oil Pressure Sensor & Oil Filter Housing
    GC0144178Courtesy of CHRYSLER LLC
  5. Remove the oil temperature sensor (1) from the oil filter housing (3).
