Fluid Drain And Refill

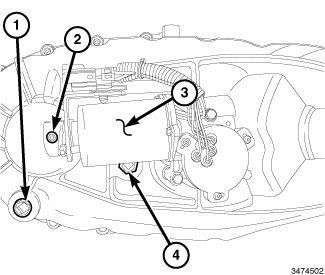

Fig 1: Shift Motor, Mounting Bolt, Fill & Drain Plugs

Courtesy of CHRYSLER GROUP, LLC

The fill (4) and drain (1) plugs are both in the rear case.

1. Raise vehicle.
2. Position drain pan under transfer case.
3. Remove drain and fill plugs and drain lubricant completely.
4. Install drain plug (1). Tighten plug to 19 - 30 N.m (15 - 22 ft. lbs.).
5. Remove drain pan.
6. Fill transfer case to bottom edge of fill plug opening with the correct fluid for the application. Refer to CAPACITIES AND RECOMMENDED FLUIDS, DESCRIPTION .
7. Install and tighten fill plug (2) to 19 - 30 N.m (15 - 22 ft. lbs.).
8. Wipe any excess fluid that may have spilled onto the exhaust.
9. Lower vehicle.
