Sensor, Manifold Air Pressure (Map): Installation: Installation
WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the Manifold Absolute Pressure (MAP) sensor mounting hole at rear of intake manifold.
- Check the condition of the MAP sensor O-ring seal and replace if necessary.

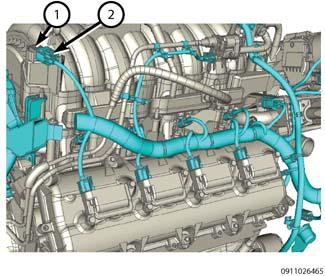

- Position the MAP sensor (1) into intake manifold.
- Rotate the MAP sensor 1/4 turn clockwise for installation.
- Connect the electrical connector (2) to the MAP sensor (1).
