Module, Keyless Ignition Node: Removal: Removal

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the lower steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL .

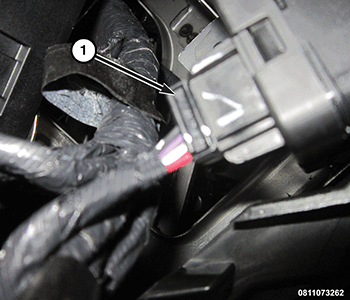

    Fig 1: Electrical Wiring Harness Connector
    GC0169656Courtesy of CHRYSLER GROUP, LLC
  3. Reach behind the ignition and disconnect the electrical wiring harness connector (1).

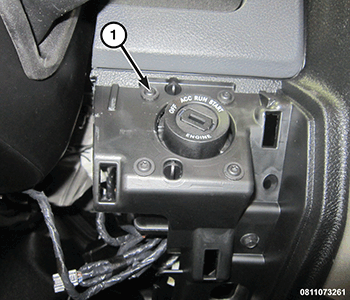

    Fig 2: Ignition Retaining Screws
    GC0169652Courtesy of CHRYSLER GROUP, LLC
  4. Remove four (1) ignition retaining screws.
  5. Remove the ignition from the vehicle.
