U-JOINT, Double Cardan: Assembly: Assembly

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

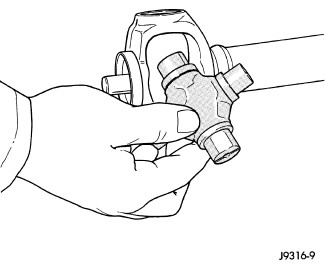

Fig 1: Cross
GC0091587Courtesy of CHRYSLER LLC
CAUTION:

All alignment marks on the link yoke and propeller shaft yoke must be aligned during assembled.

  1. Apply (EP) N.L.G.I. Grade 1 or 2 grease to inside of yoke bores.
  2. Fit cross into the propeller shaft yoke.

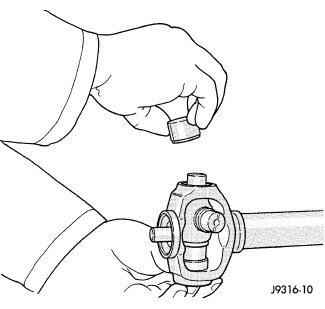

    Fig 2: Install Bearing Cap
    GC0091588Courtesy of CHRYSLER LLC
  3. Place bearing cap over the trunnion and align cap with the yoke bore. Keep needle bearings upright in the bearing cap.

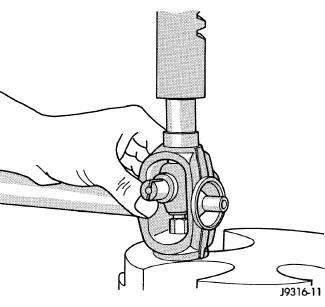

    Fig 3: Pressing Bearing Cap Into Yoke
    GC0091589Courtesy of CHRYSLER LLC
  4. Press bearing cap into yoke bore enough to clear snap ring groove and install snap-ring.

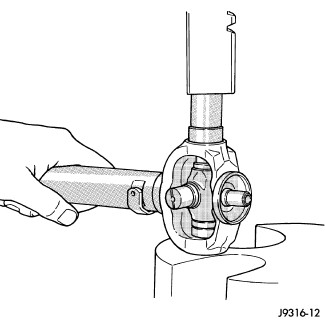

    Fig 4: Installing Other Bearing Cap Onto Opposite Trunnion
    GC0091590Courtesy of CHRYSLER LLC
  5. Flip propeller shaft yoke and install other bearing cap onto the opposite trunnion and install a snap ring.

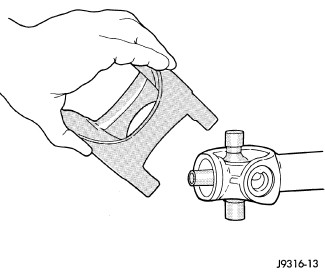

    Fig 5: Link Yoke
    GC0091591Courtesy of CHRYSLER LLC
  6. Fit link yoke onto remaining trunnions and press both bearing caps into place and install snap rings.

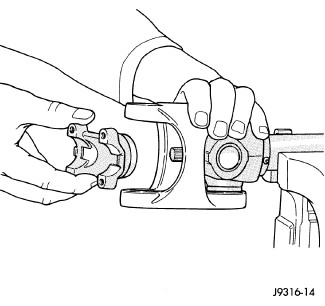

    Fig 6: Cross Centering Kit Assembly
    GC0091592Courtesy of CHRYSLER LLC
  7. Install centering kit assembly inside the link yoke.
    NOTE:

    Verify spring is properly positioned.

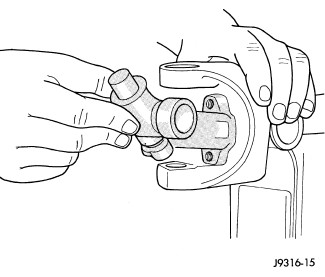

    Fig 7: Cross
    GC0091593Courtesy of CHRYSLER LLC
  8. Place two bearing caps on opposite trunnions of the remaining cross. Fit open trunnions into the link yoke bores and bearing caps into the centering kit.

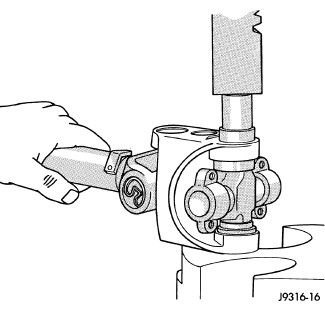

    Fig 8: Pressing Bearing Caps
    GC0091594Courtesy of CHRYSLER LLC
  9. Press remaining two bearing caps into place and install snap rings.

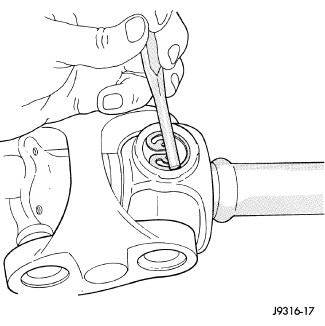

    Fig 9: Seating Snap Ring Into Groove
    GC0091595Courtesy of CHRYSLER LLC
  10. Tap snap rings to seat them into the grooves.

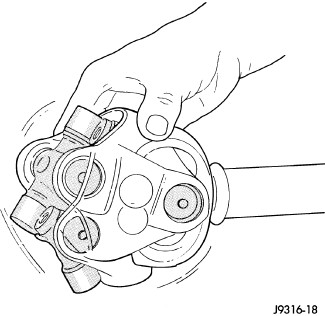

    Fig 10: Flexing Joint
    GC0091596Courtesy of CHRYSLER LLC
  11. Flexing the joint beyond center, the joint should snap over-center in both directions if correctly assembled.
  12. Install propeller shaft.
