Cooler, Power Steering: Removal: Removal

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Splash Shield & Push Pins

Courtesy of CHRYSLER GROUP, LLC

Drain and siphon the power steering fluid.
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
If equipped, remove the eight lower engine splash shield push pins (1) and remove the splash shield (2).

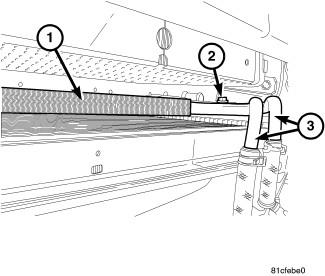

Fig 2: Fluid Cooler, Bolts & Fluid Cooler Lines
Courtesy of CHRYSLER GROUP, LLC
Disconnect the return and supply hoses connected to the power steering fluid cooler lines (3).
Remove the mounting bracket bolts (2) securing the fluid cooler (1) to the brace.
Remove the fluid cooler (1) from the vehicle.
