Solenoid, Evaporative Emissions Purge: Removal: 5.7L

WARNING: This page is about a different car, the 2015 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

The duty cycle EVAP canister purge solenoid is located in the engine compartment mounted on the right side of the intake manifold.

Remove the engine cover. Refer to COVER, ENGINE, REMOVAL, 5.7L .

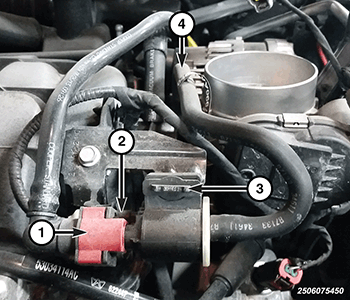

Fig 1: Quick-Connect Fitting, Bracket, Vacuum Line & Connector
Courtesy of CHRYSLER GROUP, LLC
Carefully pull the solenoid assembly straight out from the tongue-type bracket (3) without bending the two vapor lines.
Disconnect the wire harness connector (2) from the solenoid.
Disconnect vapor line quick-connect fitting (1) from the solenoid.
Disconnect the vacuum line (4) near the throttle body.
