Solenoid, Evaporative Emissions Purge: Removal: 3.6L
WARNING: This page is about a different car, the 2015 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

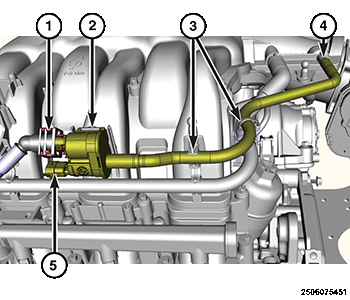

The duty cycle EVAP canister purge solenoid is located in the engine compartment mounted on the intake manifold.
- Carefully pull the solenoid assembly straight up from the tongue-type bracket (2) without bending the two vapor lines.
- Disconnect the wire harness connector (5) at the solenoid.
- Disconnect vapor line quick-connect fitting (1) at the solenoid.
- Disconnect vacuum line from the retaining clips (3) and from the throttle body (4).
