Rope, Wire: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

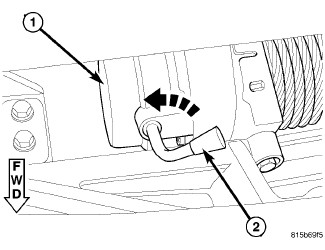

Fig 1: Engaged

Courtesy of CHRYSLER LLC

Move the clutch lever (2) to Free Spool and disengage the wire rope. Pull out a portion to give it some slack.

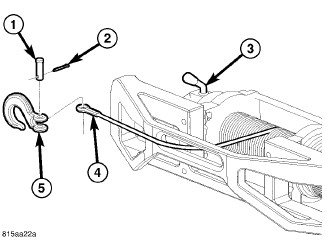

Fig 2: Hook
Courtesy of CHRYSLER LLC
Remove the clip (2), pin (1) and remove the hook (5) from the wire rope (4).

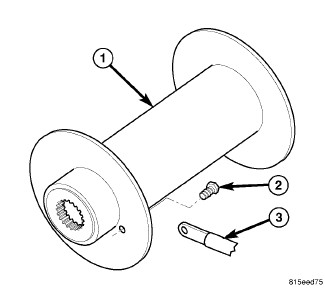

Fig 3: Identifying Wire Rope Connection, Bolt, Winch Drum & Rope
Courtesy of CHRYSLER LLC
Pull the wire rope out and unwind the winch drum (1).
Remove the bolt (2) and remove the rope (3).
