Stationary Glass: Windshield: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

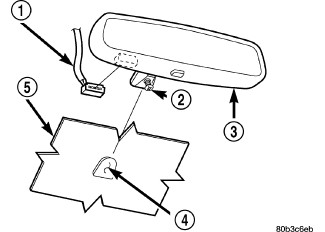

Fig 1: Rear View Mirror

Courtesy of CHRYSLER LLC

Remove inside rear view mirror (3). Refer to MIRROR, Rearview, Removal .

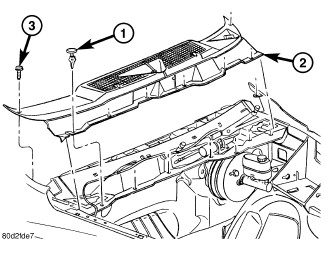

Fig 2: Removing/Installing Cowl Grille
Courtesy of CHRYSLER LLC
Remove cowl grille (2). Refer to COVER, Cowl Panel, Removal .

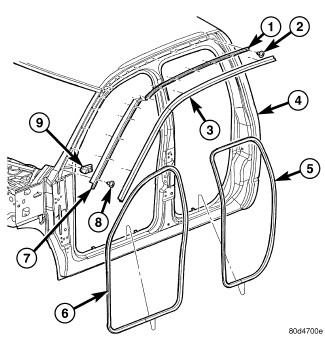

Fig 3: Removing/Installing Door Opening Weatherstrips/Seals
Courtesy of CHRYSLER LLC
Remove the A-pillar weatherstrip retainer (1).

Fig 4: Removing/Installing A-pillar Trim/Grab Handle
Courtesy of CHRYSLER LLC
Remove the A-pillar trim panels (2). Refer to PANEL, A-Pillar Trim, With Grab Handle, Removal .

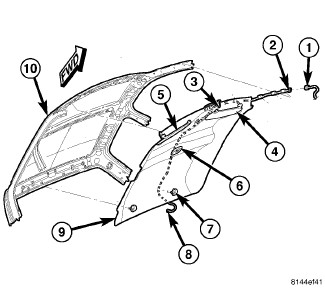

Fig 5: Removing/Installing Head Liner - Quad CAB
Courtesy of CHRYSLER LLC
Lower the headliner (9) as needed and using windshield removal tool such as an extractor or equivalent, start at the rear section of the glass and work around the parameter to remove urethane. A pneumatic cutting device can be used but is not recommended. Refer to HEADLINER, Removal .
Separate windshield from vehicle.
