Seat Back, Rear: Assembly: Assembly: Notes

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Seat Back Hog Rings
GC0084645Courtesy of CHRYSLER LLC
  1. Position the cover (3) on to the foam (1) and install three new hog rings (2).
  2. Position the foam and cover assembly over the seat back frame.

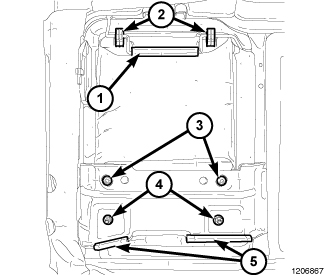

    Fig 2: Hooks, J-Straps & Hog Rings
    GC0089119Courtesy of CHRYSLER LLC
  3. Secure the J-straps (1 and 5)
  4. Position the armrest into the seat cavity and secure the upper hooks (2).
  5. Seat the armrest fully into the seat cavity and install the screws (3) and nuts (4).
  6. Tighten the screws and nuts to 28 N.m (21 ft. lbs.)

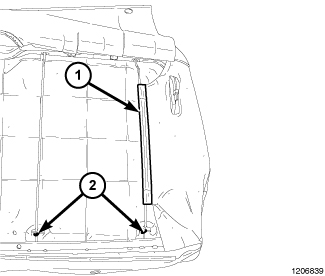

    Fig 3: J-Straps & Hog Rings
    GC0089118Courtesy of CHRYSLER LLC
  7. Secure the J-strap (1).
  8. Install two new rear hog rings (2).
    Fig 4: J-Straps

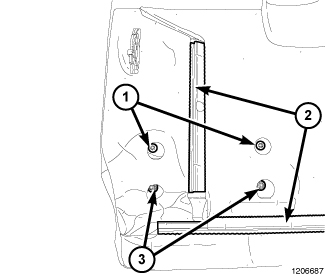

    GC0089117Courtesy of CHRYSLER LLC
  9. Secure the J-straps (2).
    Fig 5: Head Restraint Sleeves With Slave Sleeve
    GC0089114Courtesy of CHRYSLER LLC
  10. Install the new head restraint sleeves with slave sleeve (4) in the right position and master sleeve (3) in the left position.
  11. Press the lock buttons (2) on the sleeves and insert the head restraint tubes (1) into the head restraint guide sleeves, ensuring proper forward facing orientation of the head restraint.
  12. Install the seat back. Refer to SEAT BACK, Front, Installation  and SEAT BACK, Rear, Installation .
