Power Without Vented Seat

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

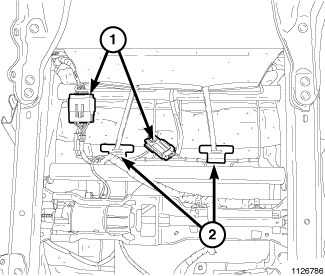

Fig 1: Seat Back Cover Straps

Courtesy of CHRYSLER LLC

Remove the front seat. Refer to SEAT, Front, Removal .
Separate the seat back cover straps (2) from under the seat cushion and disconnect the electrical connectors (1).

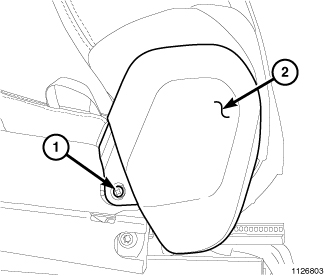

Fig 2: Side Shield Screws
Courtesy of CHRYSLER LLC
Remove the side shield screws (2) in the back.

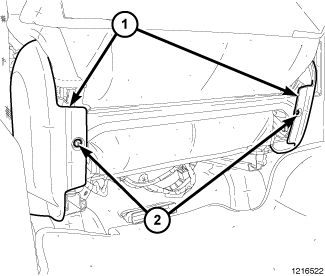

Fig 3: Inboard Shield
Courtesy of CHRYSLER LLC
Remove the inboard shield screw.
Remove the inboard side shield.

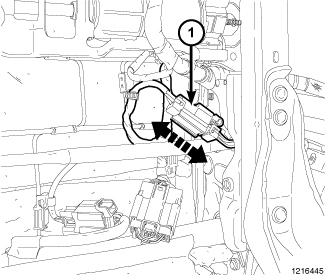

Fig 4: Lumbar Switch Electrical Connector
Courtesy of CHRYSLER LLC

CAUTION:
Disconnect the lumbar control switch electrical connector beneath the seat, prior to removing the power seat switch bezel from the seat. Failure to follow these instructions can result in damage to the lumbar control switch.
If equipped, disconnect the lumbar control switch electrical connector (1).

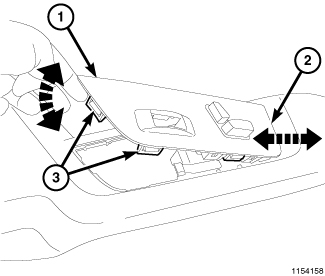

Fig 5: Switch Bezel
Courtesy of CHRYSLER LLC
Using trim stick (special tool #C-4755, Trim Stick) or equivalent, release the seven tabs (3) and separate the bezel (1) from the outboard side shield.
Pull the bezel (1) rearward and release the front retaining tab (2).
Disconnect the wire harness connectors from the power seat switch and memory seat switch, if equipped.

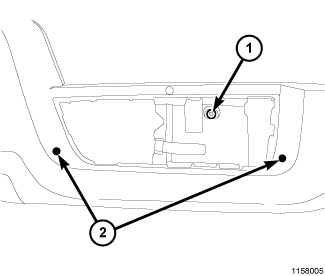

Fig 6: Outer Side Shield
Courtesy of CHRYSLER LLC
Remove the screw (1).
Release the retaining clips (2) and remove the outer side shield.

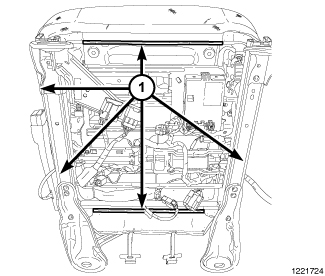

Fig 7: J-Straps
Courtesy of CHRYSLER LLC
Separate the cover J-straps (1) from the sides and remove the foam/cover assembly.

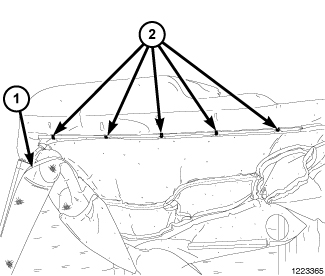

Fig 8: Hog Rings
Courtesy of CHRYSLER LLC
Remove the 10 hog rings (2) and separate the cover (1) from the foam.
