Removal 8HP45/845RE Shifter

WARNING: This page is about a different car, the 2015 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

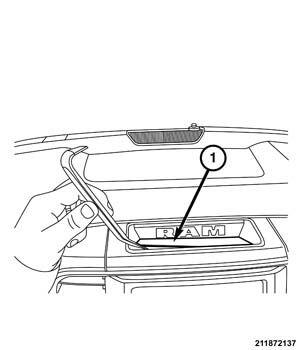

Fig 1: Removing Pocket Insert

Courtesy of CHRYSLER GROUP, LLC

Disconnect the negative battery cable.
Remove the pocket insert from above the radio (1).

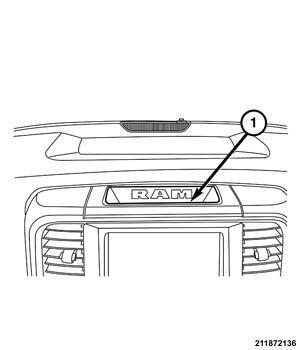

Fig 2: Radio Bezel
Courtesy of CHRYSLER GROUP, LLC
Remove two screws (1) that secure the bezel above the radio.

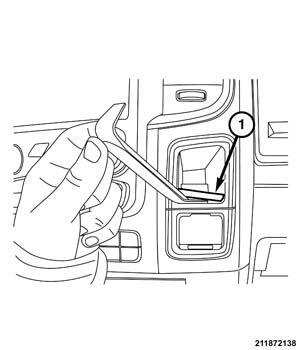

Fig 3: Pocket Insert
Courtesy of CHRYSLER GROUP, LLC
Remove the pocket insert (1) from above the power outlet.
Remove one screw that secures the bezel.

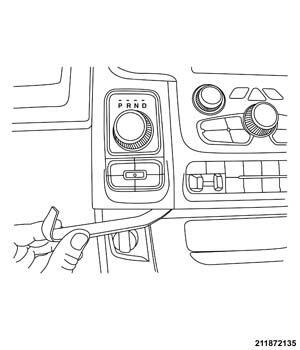

Fig 4: Removing Center Stack Bezel
Courtesy of CHRYSLER GROUP, LLC
Remove the center stack bezel with a trim stick.
Disconnect all the electrical connectors from the back of the center stack.

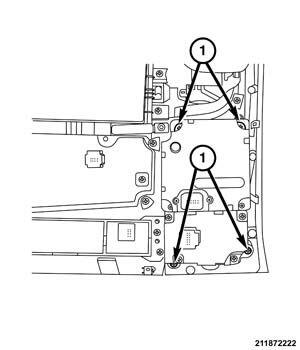

Fig 5: Electronic Shifter Screws
Courtesy of CHRYSLER GROUP, LLC
Remove the four screws (1) that secure the electronic shifter to the backside of the bezel.
