Engine To Heat Shield

WARNING: This page is about a different car, the 2015 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Heat Shield, Nut & Strap

Courtesy of CHRYSLER GROUP, LLC

Install the mounting fastener (3) and ground strap (2) to the heat shield (1).
Tighten mounting fastener.

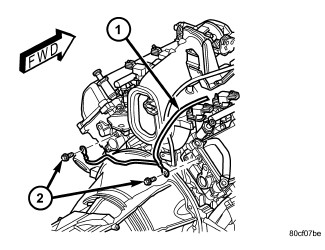

Fig 2: Engine To Heat Shield Ground Strap
Courtesy of CHRYSLER GROUP, LLC
Install the retaining bolt and ground strap to the engine cylinder heads.
Tighten the retaining bolts.
Connect the battery negative cable.
