Center, Electronic Vehicle Information: Description: Description

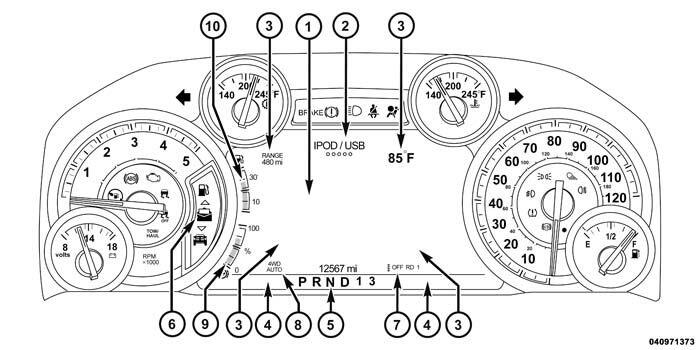

The Electronic Vehicle Information Center (EVIC) features a driver-interactive display (1). The display is located in the middle of the instrument cluster between the speedometer and tachometer. This system conveniently allows the driver to select a variety of useful information by pressing the switches mounted on the steering wheel. The EVIC displays information related to the following:
- System Status
- Vehicle information warning message displays
- Tire Pressure Monitor System - If Equipped
- Personal Settings (customer programmable features)
- Diesel Exhaust Fluid (DEF) - 6.7L Diesel engine models only
- Compass display
- Park Assist System - If Equipped
- Outside temperature display
- Trip computer functions
- U-Connect™ hands-free communication system displays - If Equipped
- Navigation system screens - If Equipped
- Audio mode display
The EVIC system is comprised of several different components. Those components are:
- Instrument Cluster
- Steering Wheel Switches
- Ambient Temperature Sensor
- Electronic Overhead Module
- Remote Compass Module
- Controller Area Network (CAN) Data Bus
- Local Interface Network (LIN) Data Bus
The EVIC display is part of the Instrument Cluster assembly and is not serviced as a separate component. If the display is inoperative the complete Instrument Cluster assembly must be replaced. Refer to REMOVAL . If the steering wheel switches are inoperative and require replacement, for the appropriate procedure. Refer to SWITCH, REMOTE RADIO, REMOVAL . If the compass position sensor (Electronic Overhead Module) is inoperative and requires replacement, for the appropriate procedure. Refer to MODULE, COMPASS, REMOVAL .
