Seal, Axle Drive Shaft: Removal: Removal

WARNING: This page is about a different car, the 2015 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

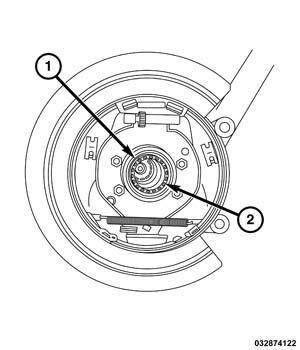

Fig 1: Axle Shaft Seal
GC0154670Courtesy of CHRYSLER GROUP, LLC
  1. Remove axle shaft. Refer to SHAFT, AXLE, REMOVAL .
  2. Remove axle shaft seal (1) from the axle tube with a seal puller.
