Bearing, Differential Side: Installation: Installation
WARNING: This page is about a different car, the 2015 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER GROUP, LLC

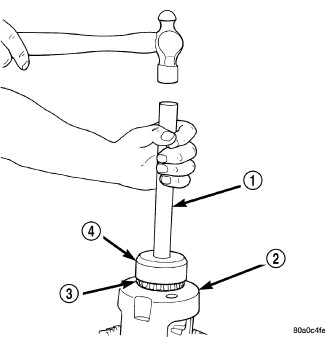

- Install differential side bearings (3) with (special tool #C-4213, Installer, Bearing) (4) and (special tool #C-4171, Driver Handle, Universal) (1).
- Install differential case into housing.
