Link, Stabilizer Bar: Removal: Removal

WARNING: This page is about a different car, the 2015 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

All views are typical.

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Support the rear axle with a suitable holding fixture.

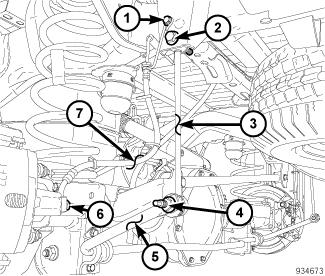

    Fig 1: Stabilizer Link Components
    GC0088303Courtesy of CHRYSLER GROUP, LLC
  3. Remove the stabilizer link upper bolt (2) and nut.
  4. Remove the stabilizer link lower nut (4).
  5. Remove stabilizer link (3).
