Section 751 (Body - Interior & Exterior - 1500): Sunroof: Sunroof: Removal: Removal

WARNING: This page is about a different car, the 2015 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Sunroof Wire Harness Electrical Connector

Courtesy of CHRYSLER GROUP, LLC

WARNING:

The Excessive Force Limitation (EFL) feature must be calibrated any time a sunroof motor/module is replaced with a new component. Failure to perform this procedure could result in vehicle damage and/or personal injury.

NOTE:

The EFL calibration procedure can be found in the service information. Refer to MOTOR, SUNROOF, STANDARD PROCEDURE .

Remove the glass. Refer to GLASS, SUNROOF, REMOVAL .
Disconnect and isolate the battery negative cable.
Remove headliner. Refer to HEADLINER, REMOVAL .
Disconnect the sunroof wire harness electrical connector (1).

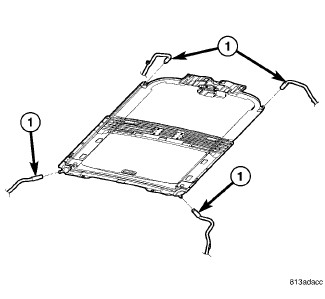

Fig 2: Drain Tubes
Courtesy of CHRYSLER GROUP, LLC
Disconnect the four drain tubes (1) from sunroof housing.

Fig 3: Sunroof, Bracket & Fasteners
Courtesy of CHRYSLER GROUP, LLC
Remove the fasteners (5) and remove the bracket (4).
With the aid of a helper, support the sunroof and remove the eight fasteners (2, 3) attaching sunroof assembly (1) to roof panel.
Remove the sunroof (1) from vehicle.
