Module, Ignition Node: Installation: Installation
WARNING: This page is about a different car, the 2014 RAM 3500 HD and 2014 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Install the Ignition Node Module (IGNM) into the Instrument Panel from the backside.
- Pull the Ignition Node Module into place.

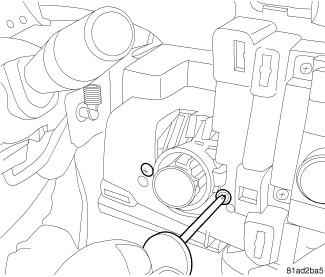

- Install 4 screws to the IGNM.
- Connect Electrical harness connector to the IGNM.
- Install the steering column opening cover and connect the related wire harness connectors.
- Install dash end cap. Refer to INSTALLATION .
- Connect negative battery cable.
- If IGNM is being replaced, program the module. Refer to STANDARD PROCEDURE .
