Gas Battery Cables

WARNING: This page is about a different car, the 2014 RAM 3500 HD and 2014 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

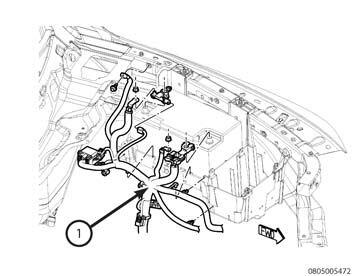

Fig 1: Gas Battery Cables
GC0157417Courtesy of CHRYSLER GROUP, LLC
NOTE:

The battery cables are non-repairable. The cables have been integrated in with the engine wiring harness. If the battery cables need replacing. It must be replaced with the wiring harness.
