Bearing, Differential Side, Electric Locker: Installation: Installation

WARNING: This page is about a different car, the 2014 RAM 3500 HD and 2014 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

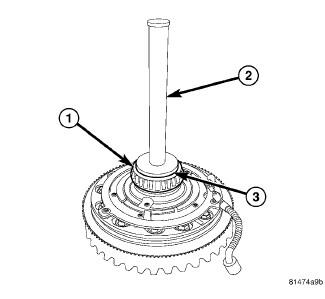

Fig 1: Installing Differential Bearing

Courtesy of CHRYSLER GROUP, LLC

Install differential bearings (1) with Handle (special tool #C-4171, Driver Handle, Universal) (2) and Installer (special tool #8956, Installer, Differential Bearing) (3).
