P24F2-00-EGR Temperature/Charge Air Cooler Temperature Correlation: Notes

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

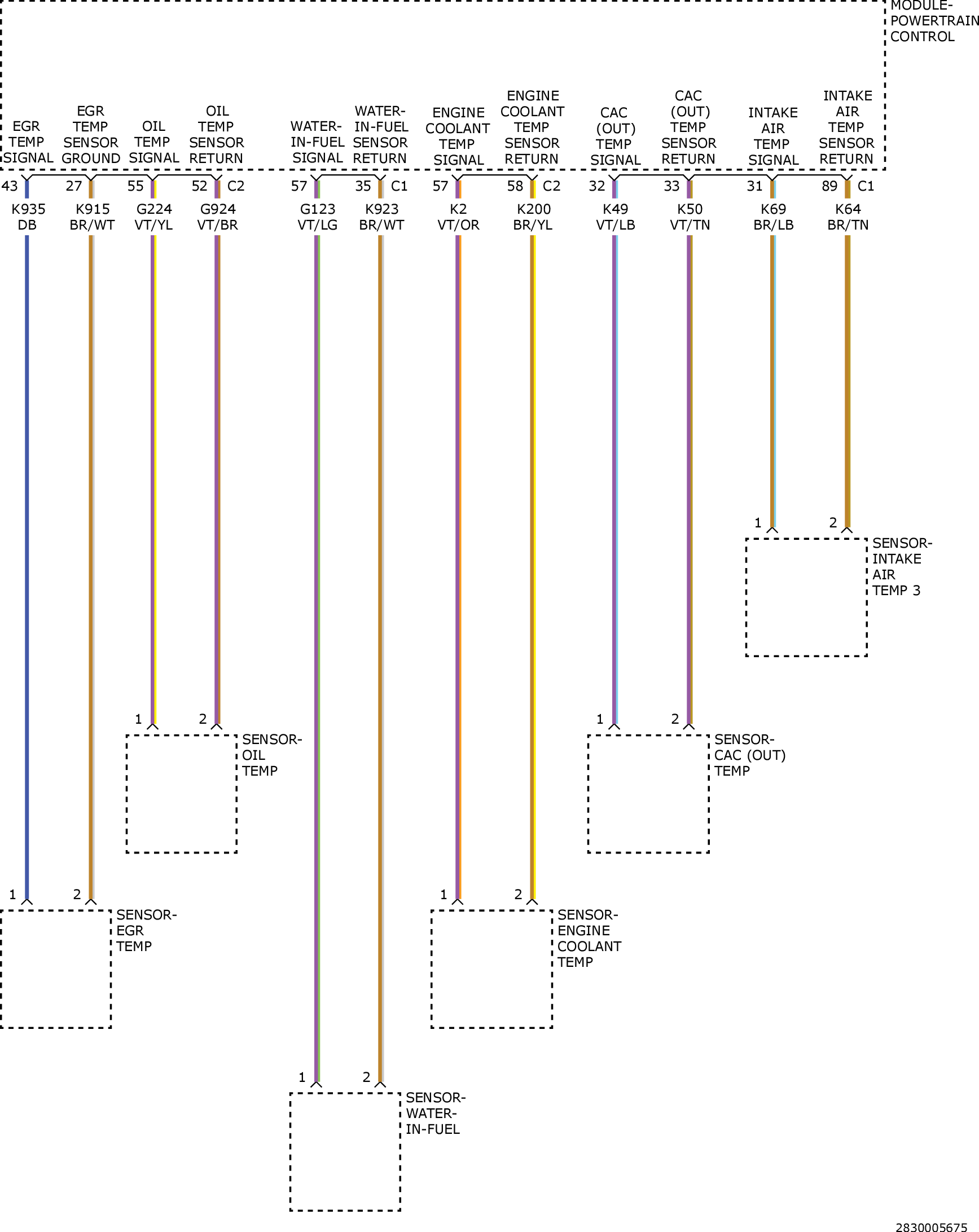

Fig 1: EGR, Oil, Coolant, CAC & Intake Air Temp Sensors & WIF Sensor Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
