Diagnostic Test

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

ACTIVE DTC
1. Turn the ignition on.
2. With the scan tool, read DTCs.
  Is the DTC active?

  Yes
  - Go To 2
  No
  - Perform the INTERMITTENT CONDITION diagnostic procedure. Refer to INTERMITTENT DTC .
CHECK THE (K670) EGR COOLER BYPASS VALVE ACTUATOR CONTROL CIRCUIT FOR A SHORT TO VOLTAGE

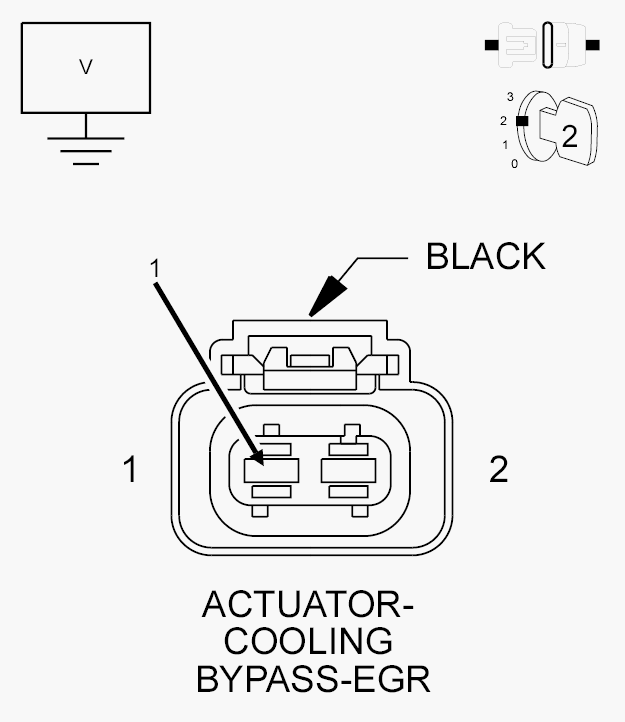

Fig 1: Checking EGR Cooler Bypass Valve Actuator Control Circuit For A Short To Voltage
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the EGR Cooler Bypass Valve Actuator harness connector.
3. Disconnect the PCM C2 harness connector.
4. Turn the ignition on.
5. Measure the voltage of the (K670) EGR Cooler Bypass Valve Actuator Control circuit at the EGR Cooler Bypass Valve harness connector.
  Is there any voltage present?

  Yes
  - Repair the (K670) EGR Cooler Bypass Valve Actuator Control circuit for a short to voltage.
  - Perform the PCM VERIFICATION TEST. Refer to PCM VERIFICATION TEST .
  No
  - Go To 3
EGR COOLER BYPASS VALVE ACTUATOR
1. Turn the ignition off.
2. Reconnect the PCM C2 harness connector.
3. Connect a jumper between ground and the (K670) EGR Cooler Bypass Valve Actuator Control circuit at the EGR Cooler Bypass Valve Actuator harness connector.
4. Turn the ignition on.
5. With the scan tool, view DTCs.
  NOTE:
  The scan tool should display a P245A-EGR COOLER BYPASS CONTROL CIRCUIT LOW DTC should set as active or pending with the jumper in place.

  Did the DTC set as described above?

  Yes
  - Replace the EGR Cooler Bypass Valve Actuator.
  - Perform the PCM VERIFICATION TEST. Refer to PCM VERIFICATION TEST .
  No
  - Go To 4
POWERTRAIN CONTROL MODULE
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the EGR Cooler Bypass Valve Actuator and the Powertrain Control Module.
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.
4. Perform any Technical Service Bulletins that may apply.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the PCM VERIFICATION TEST. Refer to PCM VERIFICATION TEST .
  No
  - Replace the Powertrain Control Module in accordance with the service information. Refer to MODULE, POWERTRAIN CONTROL, REMOVAL .
  - Perform the PCM VERIFICATION TEST. Refer to PCM VERIFICATION TEST .
