GEARTRAIN, Planetary: Disassembly: Disassembly

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

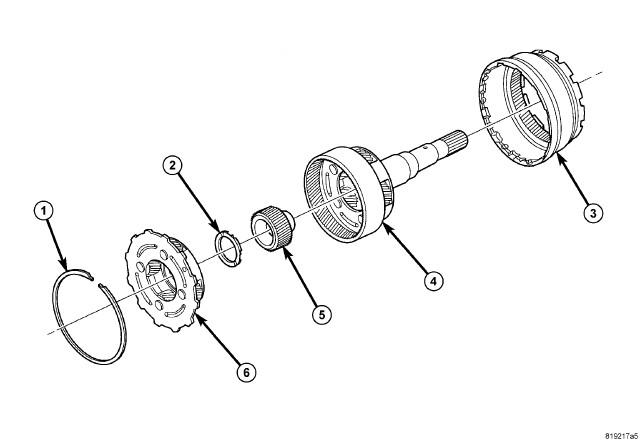

Fig 1: Reverse/Input Carrier
GC0083644Courtesy of CHRYSLER GROUP, LLC
1. Snap Ring
2. Thrust Bearing No. 10
3. Input Annulus
4. Input Planetary Carrier
5. input Sun Gear
6. Reverse Carrier
  1. Remove the snap-ring (1) holding the input annulus (4) into the input carrier (5).
  2. Remove the input annulus (4) from the input carrier (5).
  3. Remove the number 9 thrust bearing from the reverse planetary carrier (7). Note that this planetary carrier has four pinion gears.
  4. Remove the reverse planetary gear carrier (7).
  5. Remove the number 10 thrust bearing (2) from the input sun gear (6).
  6. Remove the input sun gear (6) from the input carrier (5).
