Section 58 (NV271 Transfer Case (Service Information)): Disassembly: Disassembly: MAINSHAFT

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

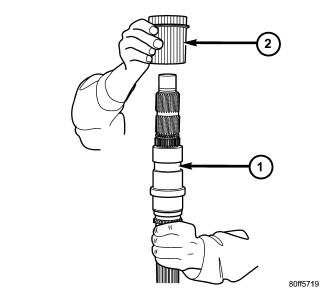

Fig 1: Identifying Clutch Gear

Courtesy of CHRYSLER LLC

1 - OUTPUT SHAFT

2 - CLUTCH GEAR

3 - MODE HUB

Remove the clutch gear (2) from the output shaft (1). Refer to Fig 1.

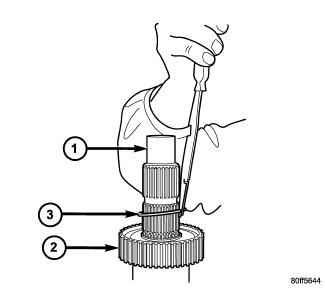

Fig 2: Identifying Mode Hub Retaining Ring And Mainshaft

Courtesy of CHRYSLER LLC

1 - MAINSHAFT

2 - MODE HUB

3 - RETAINING RING

Remove the mode hub retaining ring (3) from the mainshaft (1). Refer to Fig 2.

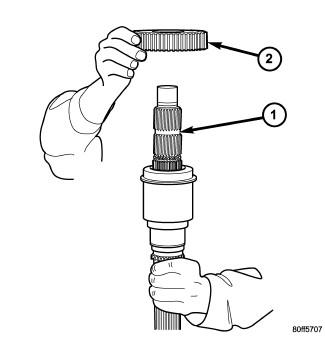

Fig 3: Identifying Mode Hub And Mainshaft
Courtesy of CHRYSLER LLC

1 - MAINSHAFT

2 - MODE HUB
Remove the mode hub (2) from the mainshaft (1). Refer to Fig 3.

Fig 4: Identifying Drive Sprocket Drive Hub
Courtesy of CHRYSLER LLC

1 - MAINSHAFT

2 - DRIVE SPROCKET DRIVE HUB
Remove the drive sprocket drive hub (2) from the mainshaft. Refer to Fig 4.
