Tube, Exhaust Gas RECIRCULATION (EGR): Removal: Removal

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing/Installing Engine Cover

Courtesy of CHRYSLER GROUP, LLC

Remove the engine cover (1).

Fig 2: Removing/Installing Intake Manifold Silencer
Courtesy of CHRYSLER GROUP, LLC
Remove the intake manifold silencer (2).
Remove the fuel injector silencer (1).

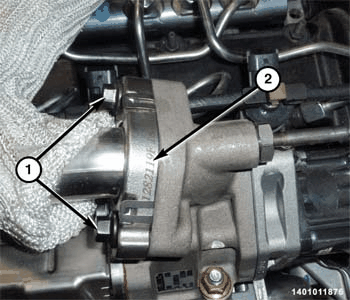

Fig 3: EGR Tube & Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the EGR tube (2) bolts (1).

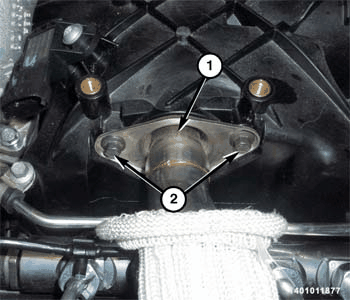

Fig 4: EGR Tube & Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove bolts (2) and the EGR tube (1).
Remove and discard both gasket.
