NOX Sensor 1/2

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

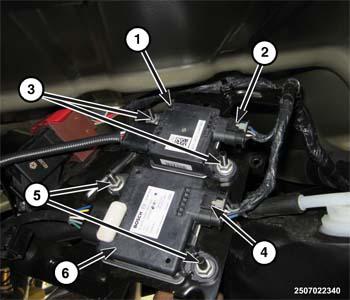

    Fig 1: NOx Sensor 1/2 Module, Nuts & Wire Harness Connector
    GC0158198Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the NOx sensor wire harness connector (4).
  4. Disconnect the wire harness retainers.
  5. Remove nuts (5) and NOx sensor 1/2 module (6).

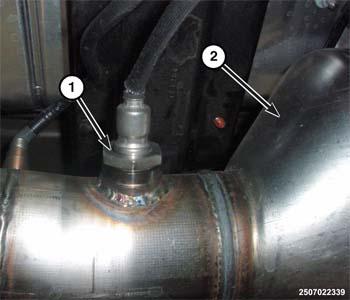

    Fig 2: NOx Sensor 1/2 & Selective Catalytic Reduction (SCR) Catalyst
    GC0158001Courtesy of CHRYSLER GROUP, LLC
  6. Remove the NOx sensor 1/2 (1) from the Selective Catalytic Reduction (SCR) catalyst (2).
