SENSOR, Speed, Output: Description: Description

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

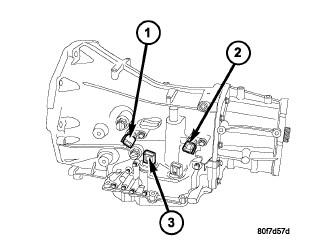

Fig 1: Locating Input Speed, Output Speed & Transmission Range Sensors

Courtesy of CHRYSLER LLC

1 - INPUT SPEED SENSOR

2 - OUTPUT SPEED SENSOR

3 - TRANSMISSION RANGE SENSOR

The Input (1) and Output (2) Speed Sensors are two-wire magnetic pickup devices that generate AC signals as rotation occurs. Refer to Fig 1. They are mounted in the left side of the transmission case and are considered primary inputs to the Transmission Control Module (TCM).
