Section 57 (42RLE Automatic Transmission (Service Information)): Disassembly: Disassembly

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If the transmission is being reconditioned (clutch/seal replacement) or replaced, it is necessary to perform the Quick Learn Procedure using the scan tool. Refer to MODULE, Transmission Control , Standard Procedure .

NOTE:

Tag all clutch pack assemblies, as they are removed, for reassembly identification.

CAUTION:

Do not intermix clutch discs or plates as the unit might then fail.

Before disassembling transmission, move the shift lever clockwise as far as it will go and then remove the shift lever.

Fig 1: Identifying Torque Converter

Courtesy of CHRYSLER LLC

1 - TORQUE CONVERTER

2 - TRANSMISSION

3 - INPUT SHAFT

Remove the torque converter (1) from the transmission input shaft (3). Refer to Fig 1.

Fig 2: Measuring Input Shaft End Play

Courtesy of CHRYSLER LLC

1 - TOOL 8266-8

2 - TOOL 8266-2

3 - TOOL C-3339A

Measure input shaft end play using pieces from End Play Set (special tool #8266B, End Play Socket Set) (1, 2). Set up tool (special tool #8266B, End Play Socket Set) and Dial Indicator (special tool #C-3339A, Set, Dial Indicator) as shown in illustration. Fig 2.
Move input shaft in and out to obtain end play reading. End play specifications are 0.127 to 0.635 mm (0.005 to 0.025 inch). Record indicator reading for reference when reassembling the transmission. If endplay exceeds the specified range, the #4 thrust plate needs to be inspected and changed if necessary.

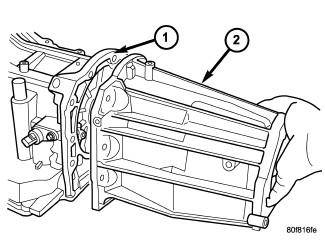

Fig 3: Identifying Extension Housing
Courtesy of CHRYSLER LLC

1 - TRANSMISSION CASE

2 - EXTENSION HOUSING

NOTE:
The four bolts (3) along the bottom of the extension housing (2) have a sealing patch applied from the factory. Note the locations of these bolts and separate these bolts for reuse.
Remove the bolts that hold the extension housing (2) onto the transmission case.

Remove the extension (2) housing, from the transmission case. There are two pry slots located near the bottom corners of the housing for separating the housing from the transmission case.

Fig 4: Identifying Housing, Lube Tube, Grommet & Pry Slots

Courtesy of CHRYSLER LLC

1 - HOUSING

2 - LUBE TUBE

3 - GROMMET

4 - PRY SLOTS

Inspect the lube tube grommet (3) for damage. Refer to Fig 4. If the grommet lip is damaged, it will need to be replaced.

Perform the following, if necessary:

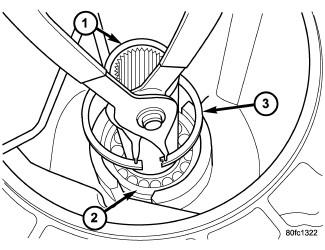

Fig 5: Identifying Extension Shaft Bearing Snap Ring

Courtesy of CHRYSLER LLC

1 - EXTENSION SHAFT

2 - BEARING

3 - SNAP RING

Remove the extension shaft bearing snap ring (3) from the extension housing. Refer to Fig 5.

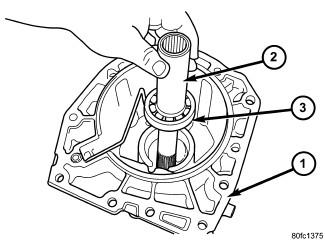

Fig 6: Identifying Extension Shaft & Bearing Assembly

Courtesy of CHRYSLER LLC

1 - EXTENSION HOUSING

2 - EXTENSION SHAFT

3 - BEARING

Remove the extension shaft and bearing assembly (2) from the extension housing (1). Refer to Fig 6.

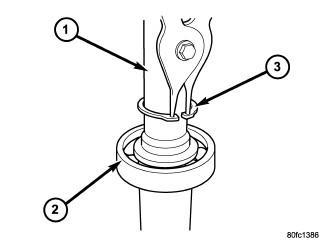

Fig 7: Identifying Extension Shaft Bearing Retaining Ring

Courtesy of CHRYSLER LLC

1 - EXTENSION SHAFT

2 - BEARING

3 - RETAINING RING

Remove the extension shaft bearing retaining ring (3) from the extension shaft (1). Refer to Fig 7.

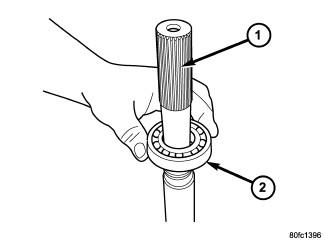

Fig 8: Identifying Extension Shaft Bearing

Courtesy of CHRYSLER LLC

1 - EXTENSION SHAFT

2 - BEARING

Remove the extension shaft bearing (2) from the extension shaft (1). Refer to Fig 8.

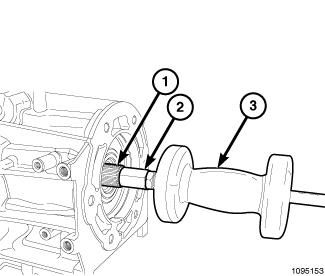

Fig 9: Removing 4x4 Stub Shaft

Courtesy of CHRYSLER LLC

Using OTC R Slide Hammer 1155 or 7703 (3), or equivalent, and Adapter (special tool #10171, Adapter, Stub Shaft Remover) (2), remove the 4X4 stub shaft (1).
Inspect the cir-clip on the shaft for damage and replace the clip if necessary.

Fig 10: Identifying Input Speed Sensor Bolt
Courtesy of CHRYSLER LLC

1 - INPUT SPEED SENSOR

2 - TRANSMISSION CASE

NOTE:
The speed sensor bolts have a sealing patch applied from the factory. Separate these bolts for reuse.
Remove the input speed sensor bolt. Refer toFig 10.

Fig 11: Identifying Output Speed Sensor Bolt
Courtesy of CHRYSLER LLC

1 - OUTPUT SPEED SENSOR

2 - TRANSMISSION CASE

NOTE:
The speed sensor bolts have a sealing patch applied from the factory. Separate these bolts for reuse.
Remove the output speed sensor bolt. Refer toFig 11.

Fig 12: Identifying Output Speed Sensor
Courtesy of CHRYSLER LLC

1 - OUTPUT SPEED SENSOR

2 - TRANSMISSION CASE
Remove the input and output (2) speed sensors. Refer to Fig 12. Identify the speed sensors for re-installation since they are not interchangeable.

Fig 13: Identifying Transmission Oil Pan Bolts
Courtesy of CHRYSLER LLC

1 - TRANSMISSION OIL PAN

2 - BOLTS

NOTE:
One of the oil pan bolts has a sealing patch applied from the factory. Separate this bolt for reuse.
Remove the transmission oil pan bolts (2). Refer to Fig 13.

Fig 14: Identifying Transmission Oil Pan
Courtesy of CHRYSLER LLC

1 - TRANSMISSION OIL PAN
Remove the transmission oil pan (1). Refer to Fig 14.

Fig 15: Identifying Oil Filter Screws
Courtesy of CHRYSLER LLC

1 - OIL FILTER

2 - SCREWS
Remove the transmission oil filter screws (2). Refer to Fig 15.

Fig 16: Identifying Transmission Filter
Courtesy of CHRYSLER LLC

1 - TRANSMISSION FILTER
Remove transmission oil filter (1). Refer to Fig 16.

Fig 17: Locating Oil Filter O-Ring
Courtesy of CHRYSLER LLC

1 - VALVE BODY

2 - O-RING
Remove the oil filter o-ring (2) from the valve body. Refer to Fig 17.

Fig 18: Identifying Valve Body Bolts
Courtesy of CHRYSLER LLC

1 - BOLTS
Remove valve body-to-case bolts (1). Refer to Fig 18.

Fig 19: Identifying Valve Body
Courtesy of CHRYSLER LLC

1 - VALVE BODY

CAUTION:
Do not handle the valve body by the manual shaft. Damage could result.
Remove valve body (1) from transmission. Refer to Fig 19.

Fig 20: Identifying Underdrive And Overdrive Accumulators
Courtesy of CHRYSLER LLC

1 - OVERDRIVE PISTON AND SPRING

2 - UNDERDRIVE PISTON AND SPRING
Remove underdrive and overdrive accumulators (1, 2). Refer to Fig 20.

Fig 21: Identifying Low/Reverse Accumulator
Courtesy of CHRYSLER LLC

1 - SNAP RING

2 - LOW/REVERSE ACCUMULATOR
Remove the low/reverse accumulator snap ring (1). Refer to Fig 21.

Fig 22: Identifying Low/Reverse Accumulator Plug
Courtesy of CHRYSLER LLC

1 - ADJUSTABLE PLIERS

2 - PLUG
Remove the low/reverse accumulator plug (2). Refer to Fig 22.

Fig 23: Low/Reverse Accumulator Piston
Courtesy of CHRYSLER LLC

1 - ACCUMULATOR PISTON
Remove low/reverse accumulator piston (1) using suitable pliers. Refer to Fig 23.

Fig 24: Low/Reverse Accumulator Piston & Springs
Courtesy of CHRYSLER LLC

1 - PISTON

2 - RETURN SPRINGS
Remove piston (1) and springs (2). Refer to Fig 24.

Fig 25: Identifying Oil Pump Attaching Bolts
Courtesy of CHRYSLER LLC

1 - BOLTS

2 - OIL PUMP
Remove and discard the oil pump-to-case bolts (1). Refer to Fig 25. The oil pump bolts are not to be reused.

Fig 26: Oil Pump Pullers
Courtesy of CHRYSLER LLC

1 - OIL PUMP

2 - PULLERS
Remove oil pump using Slide Hammers (special tool #C-3752, Slide Hammers) (2). Refer to Fig 26.

Fig 27: Removing Oil Pump While Pushing In On Input Shaft
Courtesy of CHRYSLER LLC

1 - "PUSH IN" ON INPUT SHAFT WHILE REMOVING PUMP
Remove oil pump while pushing in on input shaft (1). Refer to Fig 27.

Fig 28: Identifying Oil Pump Gasket
Courtesy of CHRYSLER LLC

1 - BELLHOUSING

2 - OIL PUMP GASKET
Remove oil pump gasket (2). Refer to Fig 28.

Fig 29: Identifying By-Pass Valve
Courtesy of CHRYSLER LLC

1 - BYPASS VALVE

CAUTION:
By-pass valve must be replaced if a transmission failure has occurred.
Remove the cooler by-pass valve (1). Refer to Fig 29.

Fig 30: Identifying Caged Needle Bearing
Courtesy of CHRYSLER LLC

1 - #1 CAGED NEEDLE BEARING

2 - NOTE: TANGED SIDE OUT
Remove the #1 caged needle bearing (1). Refer to Fig 30.

Fig 31: Identifying Input Clutch Assembly With Proper Thrust Plate
Courtesy of CHRYSLER LLC

1 - INPUT CLUTCH ASSEMBLY

Remove the input clutch assembly (1). Refer to Fig 31.

Fig 32: Identifying Thrust Plate

Courtesy of CHRYSLER LLC

1 - OVERDRIVE SHAFT ASSEMBLY

2 - #4 THRUST PLATE (SELECT)

3 - PETROLATUM FOR RETENTION

Remove the #4 thrust plate (2). Refer to Fig 32.

Fig 33: Removing/Installing Front Sun Gear Assembly And #4 Thrust Washer
Courtesy of CHRYSLER LLC

1 - FRONT SUN GEAR ASSEMBLY

2 - #4 THRUST WASHER (FOUR TABS)

Remove the front sun gear assembly (1) and #4 thrust washer (if still in place). Refer to Fig 33.

Fig 34: Identifying Front Carrier/Rear Annulus

Courtesy of CHRYSLER LLC

1 - #6 NEEDLE BEARING

2 - FRONT CARRIER AND REAR ANNULUS ASSEMBLY (TWIST AND PULL OR PUSH TO REMOVE OR INSTALL).

Remove the front carrier/rear annulus (2) and #6 needle bearing (1). Refer to Fig 34.

Fig 35: Removing/Installing Rear Sun Gear
Courtesy of CHRYSLER LLC

1 - #7 NEEDLE BEARING

2 - REAR SUN GEAR

Remove the rear sun gear (2) and #7 needle bearing (1). Refer to Fig 35.

Fig 36: Identifying Rear Sun Gear

Courtesy of CHRYSLER LLC

1 - #7 BEARING

2 - REAR SUN GEAR

NOTE:

The number seven needle bearing (1) has three antireversal tabs and is common with the number five and number two position. Refer to Fig 36. The orientation should allow the bearing to seat flat against the rear sun gear. A small amount of petrolatum can be used to hold the bearing to the rear sun gear.

Fig 37: Identifying 2/4 Clutch Retainer Snap Ring

Courtesy of CHRYSLER LLC

1 - COMPRESSOR 5058

2 - SCREWDRIVER

3 - SNAP RING

4 - 2/4 CLUTCH RETAINER

NOTE:

Verify that Compressor (special tool #5058A, Compressor, Spring) (1) is centered properly over the 2/4 clutch retainer (4) before compressing. If necessary, fasten the (special tool #5058A, Compressor, Spring) bar to the bellhousing flange with any combination of locking pliers and bolts to center the tool properly.

Install and load Compressor (special tool #5058A, Compressor, Spring) to remove the 2/4 clutch retainer snap ring (3). Refer to Fig 37.

Fig 38: Removing 2/4 Clutch Retainer
Courtesy of CHRYSLER LLC

1 - 2/4 CLUTCH RETAINER

2 - 2/4 CLUTCH RETURN SPRING

NOTE:
The 2/4 Clutch Piston has bonded seals which are not individually serviceable. Seal replacement requires replacement of the piston assembly.
Remove the 2/4 clutch retainer (1). Refer to Fig 38.

Fig 39: Installing 2/4 Clutch Belleville Spring
Courtesy of CHRYSLER LLC

1 - 2/4 CLUTCH RETURN SPRING
Remove the 2/4 clutch return spring (1). Refer to Fig 39.

Fig 40: Installing 2/4 Clutch Pack
Courtesy of CHRYSLER LLC

1 - CLUTCH PLATE (4)

2 - CLUTCH DISC (4)

Remove the 2/4 clutch pack (1, 2). Refer to Fig 40.

Fig 41: Removing Tapered Snap Ring

Courtesy of CHRYSLER LLC

1 - LOW/REVERSE CLUTCH REACTION PLATE

2 - LONG TAB

3 - SCREWDRIVER

4 - LOW/REVERSE TAPERED SNAP RING (TAPERED SIDE UP)

5 - OIL PAN FACE

Remove the tapered snap ring (4). Refer to Fig 41.

Fig 42: Installing Low/Reverse Reaction Plate With Flat Side Up
Courtesy of CHRYSLER LLC

1 - LOW/REVERSE REACTION PLATE (FLAT SIDE UP)
Remove the low/reverse reaction plate (1). Refer to Fig 42.

Fig 43: Identifying One Low/Reverse Clutch Disc
Courtesy of CHRYSLER LLC

1 - ONE DISC FROM LOW/REVERSE CLUTCH

Remove one (1) low/reverse clutch disc to facilitate snap ring removal. Refer toFig 43.

Fig 44: Identifying Low/Reverse Reaction Plate Snap Ring

Courtesy of CHRYSLER LLC

1 - SCREWDRIVER

2 - LOW/REVERSE REACTION PLATE FLAT SNAP RING

3 - DO NOT SCRATCH CLUTCH PLATE

Remove the low/reverse reaction plate snap ring (2). Refer to Fig 44.

Fig 45: Identifying Low/Reverse Clutch Pack
Courtesy of CHRYSLER LLC

1 - CLUTCH PLATES (5)

2 - CLUTCH DISCS (5)

Remove the low/reverse clutch pack (1, 2). Refer to Fig 45.

Fig 46: Grinding To Open Staking On Output Shaft Nut

Courtesy of CHRYSLER LLC

1 - OUTPUT SHAFT

2 - GRIND HERE

3 - GRIND HERE

4 - NUT STAKE

CAUTION:

Failure to grind and open stakes (4) of the output shaft nut will result in thread damage to the shaft during nut removal. Refer to Fig 46.

WARNING:

Wear safety goggles while grinding stake nuts.

Fig 47: Grinding Stakes In Shoulder Of Shaft Nut

Courtesy of CHRYSLER LLC

1 - OUTPUT SHAFT

2 - OUTPUT SHAFT NUT

Using a die grinder or equivalent, grind the stakes in the shoulder of the shaft nut (2) as shown in illustration. Fig 47. Do not grind all the way through the nut and into the shaft. There are two stakes on each nut.

Fig 48: Opening Stakes On Nut
Courtesy of CHRYSLER LLC

1 - CHISEL

2 - NUT STAKE

Using a small chisel (1), carefully open the stakes on nut (2). Refer to Fig 48.

Fig 49: Identifying Output Shaft Nut

Courtesy of CHRYSLER LLC

1 - WRENCH 6497

2 - WRENCH 6498A

3 - BREAKER BAR

Remove output shaft snap ring.

Use Wrench (special tool #6497, Wrench, Transfer Shaft) (1) and Wrench (special tool #6498A, Wrench, Socket) (2) to remove the output shaft nut. Refer to Fig 49.

Fig 50: Removing Output Shaft From Case Using Shop Press

Courtesy of CHRYSLER LLC

1 - OUTPUT SHAFT

2 - ARBOR PRESS

3 - TRANSMISSION CASE

Remove the output shaft (1) from case (3) using a shop press (2). Refer to Fig 50.

Fig 51: Removing Front Output Shaft Bearing Cup
Courtesy of CHRYSLER LLC

1 - ARBOR PRESS

2 - REMOVER 6596
Use Remover (special tool #6596, Remover, Bearing Cup) (2) with a shop press (1) to remove the front output shaft bearing cup. Refer to Fig 51.

Fig 52: Pressing Rear Output Shaft Bearing Cup
Courtesy of CHRYSLER LLC

1 - SPECIAL TOOL 4171 AND 4171-2

2 - REMOVER TOOL 6597

Use Remover (special tool #6597, Remover, Bearing Cup) (2) and Universal Handle (special tool #C-4171, Driver Handle, Universal) (1) and Handle Extension (special tool #C-4171-2, Extension, Drive Handle) to press the rear output shaft bearing cup rearward. Refer to Fig 52.

Fig 53: Removing Rear Carrier Front Bearing Cone

Courtesy of CHRYSLER LLC

1 - SPECIAL TOOL 5048-1

2 - SPECIAL TOOL 6545

3 - REAR CARRIER

4 - SPECIAL TOOL 5048

Remove the rear carrier front bearing cone (3). Refer to Fig 53.

Fig 54: Installing And Load Compressor

Courtesy of CHRYSLER LLC

1 - LOW/REVERSE CLUTCH RETURN SPRING

2 - SNAP RING (INSTALL AS SHOWN IN ILLUSTRATION)

3 - COMPRESSOR 5058A-3

4 - COMPRESSOR 5059A

5 - DISK 6057

Install and load compressor (special tool #5059-A, Compressor, Spring) (4) as shown in illustration. Refer to Fig 54.

Fig 55: Removing Low/Reverse Belleville Spring Snap Ring

Courtesy of CHRYSLER LLC

1 - SNAP RING OPENING MUST BE BETWEEN SPRING LEVERS (AS SHOWN IN ILLUSTRATION)

2 - SNAP RING PLIERS

3 - SPECIAL TOOL 5059-A

Remove the low/reverse belleville spring snap ring (1). Refer to Fig 55.

Fig 56: Low/Reverse Piston Belleville Spring Into Position
Courtesy of CHRYSLER LLC

1 - LOW/REVERSE PISTON RETURN SPRING

2 - PISTON
Remove the low/reverse piston belleville spring (1). Refer to Fig 56.

Fig 57: Anchor Shaft Removal
Courtesy of CHRYSLER LLC

1 - PIN PUNCH

2 - GUIDE BRACKET ASSEMBLY
Remove the park sprag pivot retaining screw.
Drive out the anchor shaft using suitable punch (1). Refer to Fig 57.

Fig 58: Identifying Guide Bracket Pivot Pin
Courtesy of CHRYSLER LLC

1 - PIVOT PIN

2 - GUIDE BRACKET ASSEMBLY

Remove the guide bracket pivot pin (1). Refer to Fig 58. Inspect all components for wear and replace if necessary.

Fig 59: Identifying Low/Reverse Clutch Piston

Courtesy of CHRYSLER LLC

1 - LOW/REVERSE CLUTCH PISTON

2 - D-RING SEAL

3 - D-RING SEAL

NOTE:

The Low/Reverse Clutch Piston has bonded seals which are not individually serviceable. Seal replacement requires replacement of the piston assembly.

Remove the low/reverse clutch piston (1). Refer to Fig 59.
Remove the low/reverse piston retainer screws.

Fig 60: Identifying Piston Retainer
Courtesy of CHRYSLER LLC

1 - LOW/REVERSE CLUTCH PISTON RETAINER

2 - GASKET
Remove low/reverse piston retainer (1). Refer to Fig 60.

Fig 61: Identifying Low/Reverse Piston Retainer Gasket
Courtesy of CHRYSLER LLC

1 - GASKET HOLES MUST LINE UP

2 - LOW/REVERSE CLUTCH PISTON RETAINER GASKET
Remove the low/reverse piston retainer gasket (2). Refer to Fig 61.
