Valve, 3-Way Coolant: Removal: Removal
WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable.
- Drain the coolant system. Refer to STANDARD PROCEDURE .
- Disconnect the three way coolant valve wire harness connector.

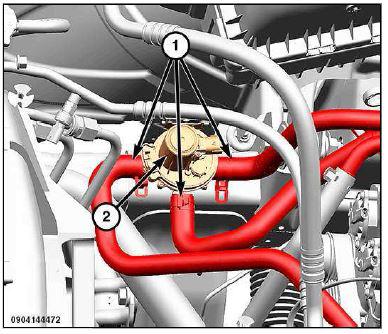

- Remove the coolant lines (1) from the three way valve (2).

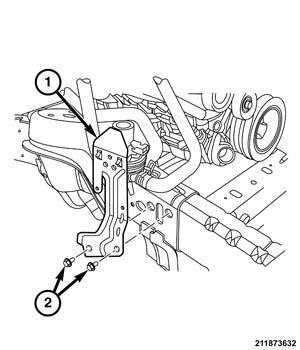

- Remove the bolts (2) through the right front wheel well.
