HOUSING, Transmission, Rear Extension: Assembly: Assembly

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Extension Housing, STS C-3972 And STS C-4171

Courtesy of CHRYSLER LLC

Clean the extension housing seal bore in the extension housing of any residue or particles remaining from the original seal.
NOTE:
The small weep hole in the dust boot of the seal should face downward when installed in the extension housing.
Install new oil seal in the extension housing (1) using (special tool #8896, Installer, Seal) (2) and (special tool #C-4171, Driver Handle, Universal) (3).

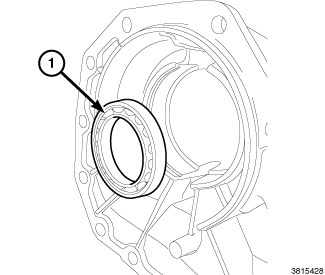

Fig 2: Center Bearing
Courtesy of CHRYSLER LLC
Install the center bearing (1).

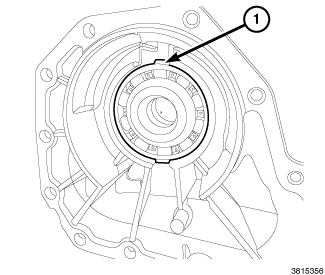

Fig 3: Identifying Center Bearing Snap-Ring
Courtesy of CHRYSLER LLC
Install the spacer (if equipped) and center bearing snap ring (1).

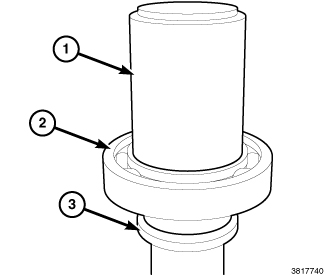

Fig 4: Install Bearing On Shaft Using STS 6756
Courtesy of CHRYSLER LLC
Using (special tool #6756, Receiver, Ball Joint) (1) and press, install the bearing (2) onto the shaft (3).

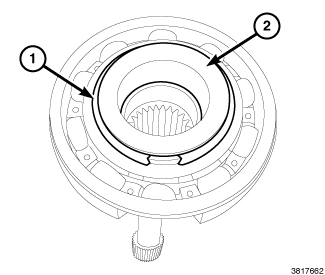

Fig 5: Snap-Ring And Shaft
Courtesy of CHRYSLER LLC
Install snap ring (1) on shaft (2).

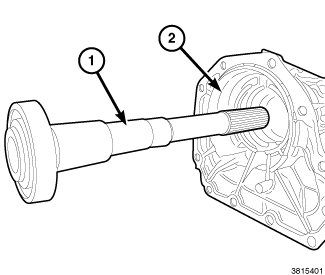

Fig 6: Identifying Shaft And Extension Housing
Courtesy of CHRYSLER LLC
Install the shaft (1) into the extension housing (2).

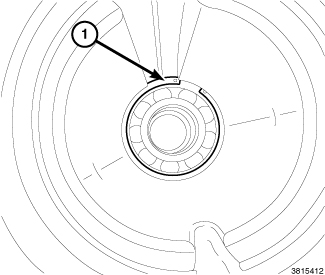

Fig 7: Identifying Bearing Snap-Ring
Courtesy of CHRYSLER LLC
Install the bearing snap-ring (1) into the extension housing.
