ASSEMBLY, Transmission Solenoid and TRS: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If the Transmission Solenoid/TRS Assembly is being replaced, the Quick Learn Procedure must be performed. Refer to MODULE, Transmission Control , Standard Procedure .

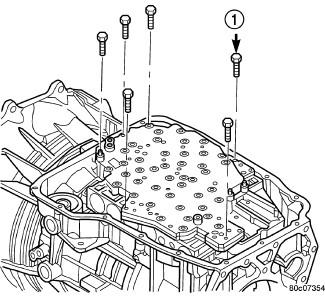

Fig 1: Removing/Installing Valve Body Bolts

Courtesy of CHRYSLER LLC

1 - VALVE BODY TO CASE BOLT (6)

Remove the valve body from the transmission.

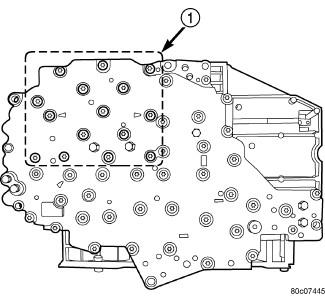

Fig 2: Locating Bolts Holding Transmission Solenoid/TRS Assembly Onto Valve Body
Courtesy of CHRYSLER LLC

1 - SOLENOID PACK BOLTS (15)
Remove the bolts (1) holding the transmission solenoid/TRS assembly onto the valve body.
Separate the transmission solenoid/TRS assembly from the valve body.
