Module, Powertrain Control: Installation: Diesel

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

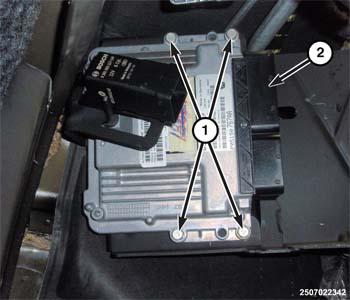

Fig 1: PCM & Bolts
GC0158019Courtesy of CHRYSLER GROUP, LLC
  1. Check pin connectors in Powertrain Control Module (PCM) and the wire harness connectors for corrosion or damage. Also check pin heights in connectors. Pin heights should all be the same. Repair as necessary before installing harness connectors.
  2. Install the PCM (2) and securely tighten bolts (1).

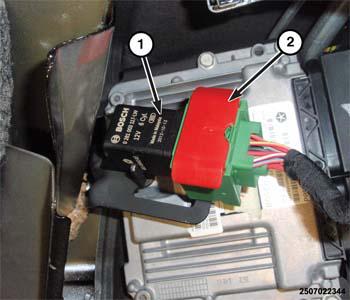

    Fig 2: Glow Plug Module Wire Harness Connector
    GC0158082Courtesy of CHRYSLER GROUP, LLC
  3. Connect the glow plug module wire harness connector (2).

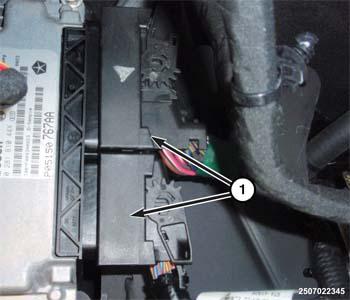

    Fig 3: Powertrain Control Module (PCM) Wire Harness Connectors
    GC0158192Courtesy of CHRYSLER GROUP, LLC
  4. Connect the PCM wire harness connector (1).

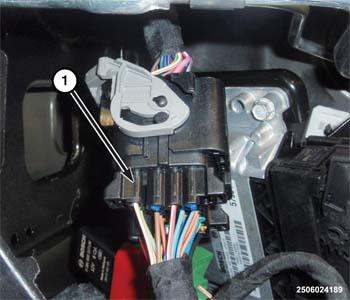

    Fig 4: Engine Wire Harness Connector At PCM
    GC0158053Courtesy of CHRYSLER GROUP, LLC
  5. Connect the engine wire harness connector (1).
  6. Connect the negative battery cable.
  7. Use a diagnostic scan tool to reprogram new PCM (2) with vehicles original Vehicle Identification Number (VIN) and original vehicle mileage. Refer to appropriate Diagnostic Information .
