VALVE, Overflow: Description: Description
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The cascade overflow valve is not serviced separately.

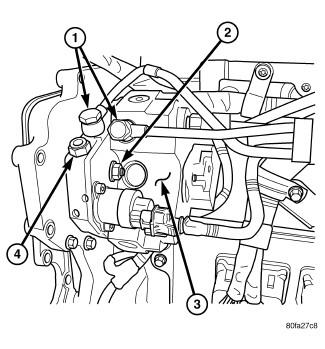

| 1 - BANJO BOLTS |
| 2 - PUMP MOUNTING NUTS (3) |
| 3 - FUEL INJECTION PUMP |
| 4 - CASCADE OVERFLOW VALVE |
The cascade overflow valve (4) is located on the top/rear side of the fuel injection pump. Refer to Fig 1.
