Side (Mid-Ship) Mounted Fuel Tank

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

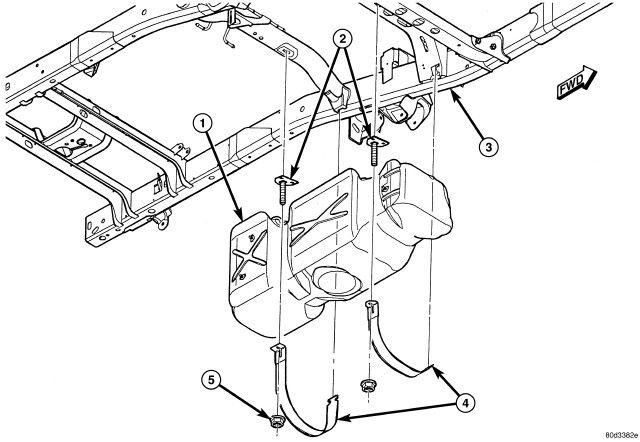

Fig 1: Fuel Tank Mounting - Mid Tank

Courtesy of CHRYSLER LLC

If fuel pump module is being installed, refer to MODULE, Fuel Pump , Installation for diesel, or MODULE, Fuel Pump , Installation for gas.
Place assembly to a hydraulic jack.
Raise assembly up to frame.
Install fuel tank straps (4). Tighten nuts (5) to 41 N.m (30 ft. lbs.).

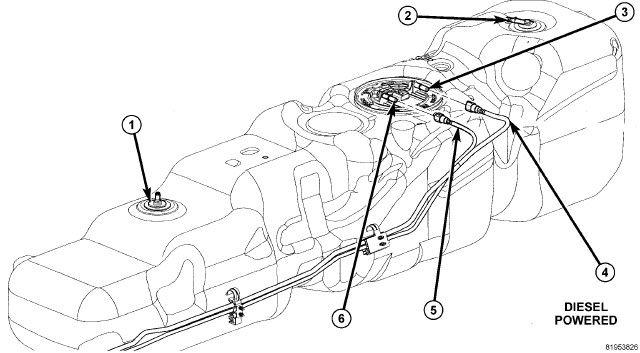

Fig 2: Fuel Line Connections - Diesel Mid Tank
Courtesy of CHRYSLER LLC
Connect fuel return and supply line quick-connect fittings (4 and 5).

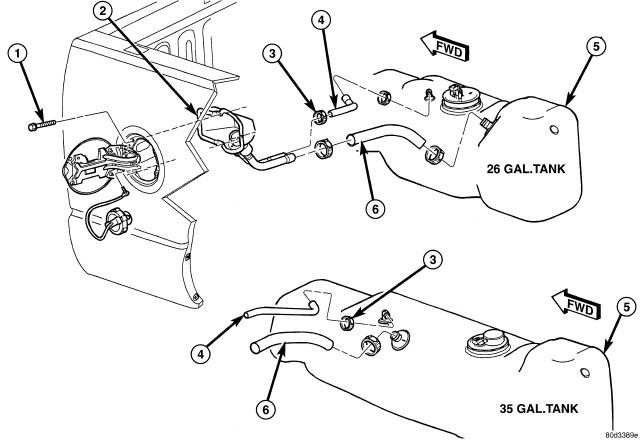

Fig 3: Fuel Tank Fill/Vent Hoses - Mid Tank
Courtesy of CHRYSLER LLC
Position hoses (4 and 6) to tank fittings.
Tighten clamps (3).

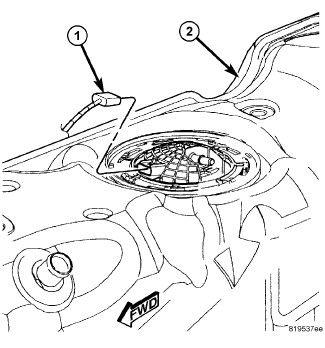

Fig 4: Electrical Connector - Mid Tank
Courtesy of CHRYSLER LLC
Connect harness connector (1) at top of module.
Fill tank and check for leaks.
