Insulator, Engine Mount, Front: Removal: Removal: 2WD

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable.
  2. Raise the vehicle.
    NOTE:

    Left side shown in illustration. Right side similar.

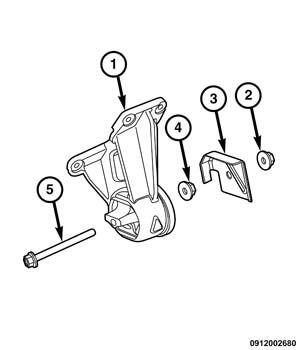

    Fig 1: Loosening/Tightening Engine Mounts
    GC0154442Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Loosening of both front engine mount through bolts (5) will be required for lifting of the engine.

  3. Remove the engine mount heat shield nuts (2).
  4. Remove the heat shield (3) from the engine mount through bolts (5).
  5. Loosen the nut (4) from engine mount through bolts.
  6. Using a suitable jack. Lift the engine off the through bolts.

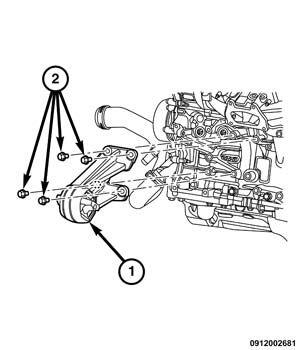

    Fig 2: Remove/Install Engine Mount
    GC0154401Courtesy of CHRYSLER GROUP, LLC
  7. Remove the bolts (2) that secure the engine mount (1) to the engine block.
  8. Remove insulator from engine.
