Inlet Temperature Sensor

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

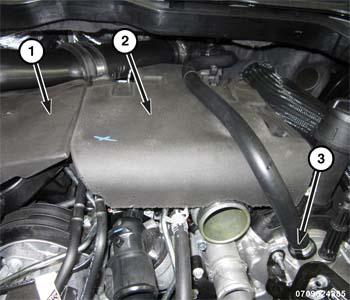

Fig 1: Removing/Installing Engine Cover

Courtesy of CHRYSLER GROUP, LLC

Disconnect the negative battery cable.
Remove the engine cover (1).

Fig 2: Removing/Installing Intake Manifold Silencer
Courtesy of CHRYSLER GROUP, LLC
Remove the intake manifold silencer (2).

Fig 3: Inlet Air Temperature Sensor Wire Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Disconnect the inlet air temperature sensor wire harness connector (1).

Fig 4: Air Inlet Temperature Sensor
Courtesy of CHRYSLER GROUP, LLC
Turn counter clockwise 1/4 turn and remove the inlet air temperature sensor (2).
