Inlet Temperature Sensor
WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER GROUP, LLC

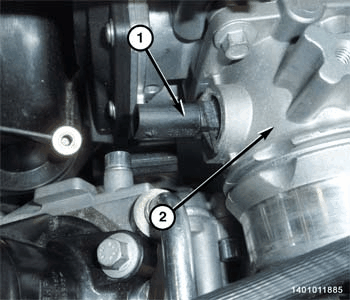

The air inlet temperature sensor (1) is located on the EGR air flow control valve. The air inlet temperature sensor (1) measures the temperature of the air after the Charge Air Cooler (CAC).
