Right Fuel Rail

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

No sparks, open flames or smoking. Risk of poisoning from inhaling and swallowing fuel. Risk of injury to eyes and skin from contact with fuel. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing.

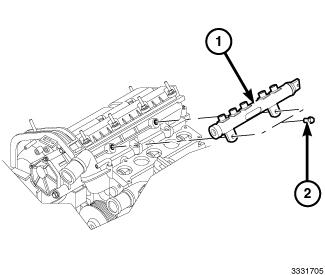

Fig 1: Right Fuel Rail & Bolts

Courtesy of CHRYSLER GROUP, LLC

Install the fuel rail (1). Tighten bolts (2) to 25 N.m (18 ft. lbs.).
NOTE:
Fuel tubes must be replaced anytime they are removed.
Install the high pressure fuel rail tubes. Refer to TUBE(S), FUEL, INSTALLATION .

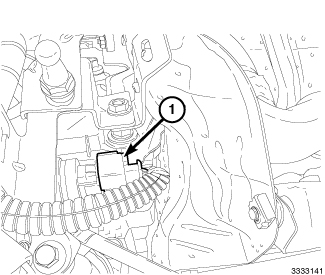

Fig 2: Fuel Rail Pressure Sensor Connector
Courtesy of CHRYSLER GROUP, LLC
Connect the fuel rail pressure sensor harness connector (1).
Install the intake manifold. Refer to MANIFOLD, INTAKE, INSTALLATION .
Connect the negative battery cable.
Start the engine, allow the engine to warm, turn the engine off and inspect for leaks.
