Left Fuel Rail

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

No sparks, open flames or smoking. Risk of poisoning from inhaling and swallowing fuel. Risk of injury to eyes and skin from contact with fuel. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing.

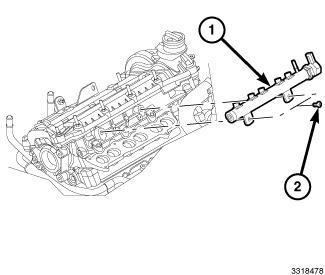

Fig 1: Left Fuel Rail & Bolts

Courtesy of CHRYSLER GROUP, LLC

Install the fuel rail (1). Tighten bolts (2) to 25 N.m (18 ft. lbs.).
NOTE:
Fuel tubes must be replaced anytime they are removed.
Install the high pressure fuel rail tubes. Refer to TUBE(S), FUEL, INSTALLATION .

Fig 2: Fuel Rail Return Line & Fuel Rail Solenoid Connector
Courtesy of CHRYSLER GROUP, LLC
Position fuel rail return line (2) and connect to fuel rail.
Connect the fuel pressure solenoid wire harness connector (1).
Install the intake manifold. Refer to MANIFOLD, INTAKE, INSTALLATION .
Connect the negative battery cable.
Start engine, allow to warm, turn engine off and inspect for leaks.
