Upper Timing Cover

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Removing/Installing Engine Cover
GC0158138Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable.
  2. Remove the engine cover (1).
  3. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
    Fig 2: Lower Radiator Cover
    GC0152028Courtesy of CHRYSLER GROUP, LLC
  4. Remove the belly pan (2).
  5. Drain the cooling system. Refer to STANDARD PROCEDURE .
  6. Lower the vehicle.
  7. Remove the air cleaner body and intake air tube. Refer to BODY, AIR CLEANER, REMOVAL .
  8. Remove the charge air outlet tube.
    Fig 3: CAC Hose & EGR Air Flow Control Valve
    GC0158047Courtesy of CHRYSLER GROUP, LLC
  9. Remove the Charge Air Cooler (CAC) hose from EGR air flow control valve (2).
  10. Remove the electric vacuum pump. Refer to PUMP, ELECTRIC VACUUM, REMOVAL .
  11. Remove the upper and lower radiator hoses.
  12. Remove the high pressure fuel injection pump. Refer to PUMP, FUEL INJECTION, HIGH PRESSURE, REMOVAL .
  13. Remove the vacuum pump. Refer to PUMP, VACUUM, REMOVAL .
  14. Remove the right and left cylinder head covers. Refer to COVER(S), CYLINDER HEAD, REMOVAL .

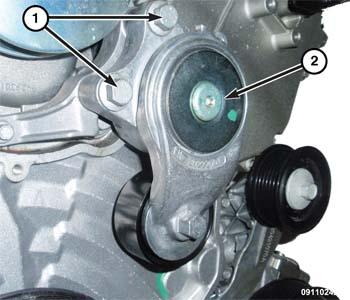

    Fig 4: Belt Tensioner & Bolts
    GC0158176Courtesy of CHRYSLER GROUP, LLC
  15. Remove the serpentine belt tensioner. Refer to TENSIONER, BELT, REMOVAL .
    Fig 5: Serpentine Belt Tensioner Bracket & Bolts
    GC0146730Courtesy of CHRYSLER GROUP, LLC
  16. Remove bolts (2 and 3) and the serpentine belt tensioner bracket (1).

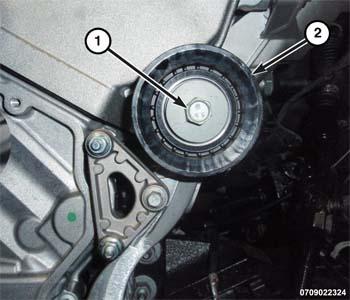

    Fig 6: Idler Pulley & Bolt
    GC0158120Courtesy of CHRYSLER GROUP, LLC
  17. Remove bolts (1) and the idler pulley (2).

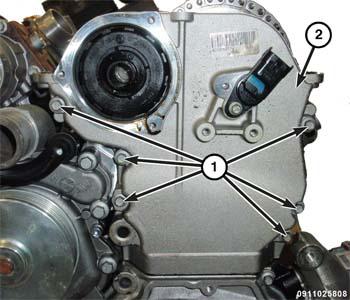

    Fig 7: Left Timing Cover & Bolts
    GC0158132Courtesy of CHRYSLER GROUP, LLC
  18. Remove bolts (1) and the left timing cover (2).
    Fig 8: Right Upper Cover & Bolts
    GC0146752Courtesy of CHRYSLER GROUP, LLC
  19. Remove bolts (2) and the right upper cover (1).
