Right Bank

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

The normal operating temperature of the exhaust system is very high. Therefore, never work around or attempt to service any part of the exhaust system until it has cooled. Special care should be taken when working near the catalytic converter. The temperature of the converter rises to a high level after a short period of engine operation time.

Fig 1: Removing/Installing Engine Cover

Courtesy of CHRYSLER GROUP, LLC

Disconnect the negative battery cable.
Remove the engine cover (1).
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Drain the cooling system. Refer to STANDARD PROCEDURE .

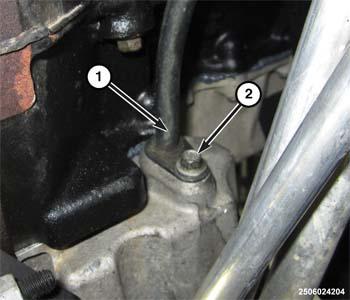

Fig 2: Oil Dip Stick Tube & Bolt
Courtesy of CHRYSLER GROUP, LLC
Remove the lower oil dipstick tube bolt (2).
Lower the vehicle.
Remove upper bolt and the engine oil dip stick tube.

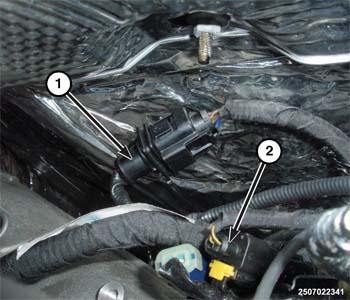

Fig 3: Oxygen Sensor Wire Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Disconnect the exhaust gas temperature sensor wire harness connector (2).

Fig 4: Right Exhaust Manifold Heat Shield & Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove bolts (1) and the right exhaust manifold heat shield (2).

Fig 5: EGR Cooler Coolant Tube & Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove bolts (1 and 3) and the EGR cooler coolant tube (2).

Fig 6: EGR Cooler Supply Hose
Courtesy of CHRYSLER GROUP, LLC
Disconnect the EGR cooler supply hose (1).

Fig 7: Right Exhaust Manifold To Turbocharger Retaining Nuts
Courtesy of CHRYSLER GROUP, LLC
Remove the exhaust pressure sensor. Refer to SENSOR, EXHAUST PRESSURE, REMOVAL .
Remove the right exhaust manifold to turbocharger retaining nuts (1).

Fig 8: Right Exhaust Manifold & Nuts
Courtesy of CHRYSLER GROUP, LLC
Remove the nuts (1) and right exhaust manifold (2).
