Insulator, Engine Mount, Left: Removal: 4X4-Left

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

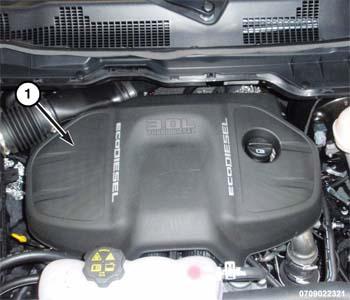

Fig 1: Removing/Installing Engine Cover
GC0158138Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the engine cover (1).
  3. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL .
  4. Remove the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL .

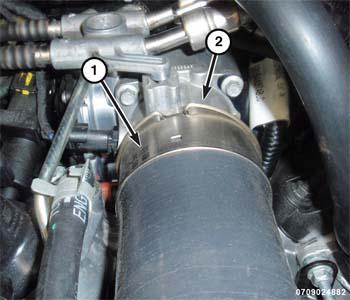

    Fig 2: CAC Hose & EGR Air Flow Control Valve
    GC0158047Courtesy of CHRYSLER GROUP, LLC
  5. Disconnect the CAC hose (1) from the EGR air flow control valve (2).
    Fig 3: Engine Lifting Special Tool VM.10360A-3 & Bolts
    GC0157996Courtesy of CHRYSLER GROUP, LLC
  6. Install the Engine Lifting Bracket (Front) VM.10360A-1 (1) and securely tighten bolts (2).
  7. Assemble the 8534B and support the engine.
  8. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  9. If equipped, removed the belly pan.
  10. Remove the front driveline axle (Refer to FRONT AXLE - 215FD - 1500 /Removal).

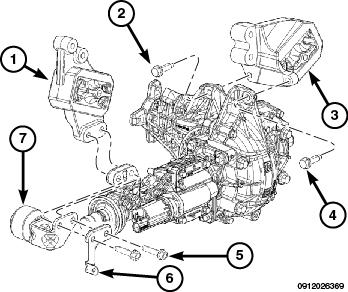

    Fig 4: Left Engine Mount Bracket & Bolts
    GC0158063Courtesy of CHRYSLER GROUP, LLC
  11. Remove bolts (2, 4) and the left engine mount (3).

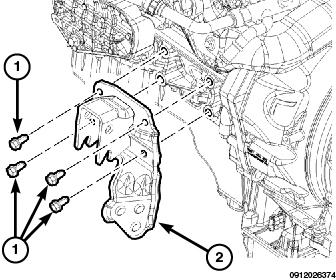

    Fig 5: Left Engine Mount Bracket & Bolts
    GC0158112Courtesy of CHRYSLER GROUP, LLC
  12. If necessary, remove bolts (1) and the left engine mount bracket (2).
